Low-ESR Capacitors: What Really Limits SVG Performance

SVG systems are only as reliable as the DC-link capacitor behind them. When that capacitor's ESR runs high, ripple current from the IGBT switching converts into heat, and heat is what ultimately determines how long the SVG stays in service between failures. It's a variable that gets far less attention than the control algorithm or the IGBT module, yet it's often the one that decides whether an SVG meets its response speed, efficiency, and lifetime targets in the field.

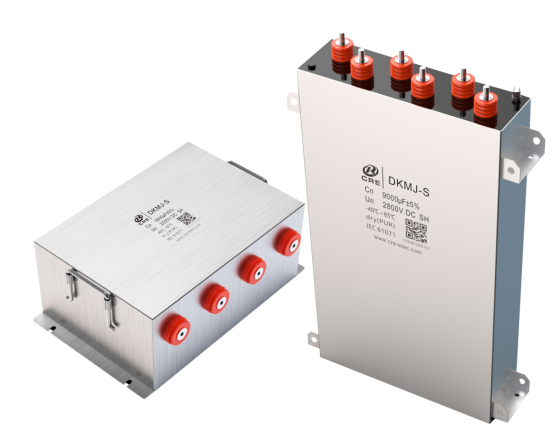

CRE DKMJ-S series DC-link capacitors

The DC-Link Capacitor's Three Requirements

An SVG's DC-link capacitor stores energy to stabilize the bus voltage, absorbs the high-frequency ripple current generated by IGBT switching, and provides the low-impedance path the IGBTs need to switch cleanly at high dv/dt. This places three demanding requirements on it:

1. Sustained high ripple current (Irms) handling: IGBT switching generates a continuous high-frequency ripple that the capacitor must absorb without excessive heating.

2. Extremely low equivalent series resistance (ESR): without this, ripple current converts into internal heat rather than being passed through harmlessly.

3. Low equivalent series inductance (ESL): this is needed to match the IGBT's high dv/dt switching characteristics and limit voltage spikes.

Electrolytic capacitors typically carry higher ESR, and the resulting self-heating shortens service life, since electrolytic capacitor lifespan generally halves for every 10°C rise in operating temperature, which is why more SVG manufacturers are migrating to metallized polypropylene film capacitors for the DC-link stage.

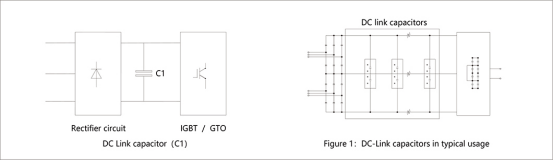

Typical circuit diagram of the DKMJ-S series DC-link capacitor

DKMJ-S: A DC-Link Capacitor Purpose-Built for SVG Duty

At CRE New Energy, our DKMJ-S series is a metal-shell DC-link capacitor specifically positioned to replace electrolytic capacitors in SVG, SVC, and other power quality management equipment.

The very low dissipation factor (tgδ ≤ 0.003) indicates minimal dielectric loss, and, combined with the self-healing metallized-film construction, places DKMJ-S's effective ESR well below that of an equivalent-capacity electrolytic capacitor, keeping self-heating under control even under the high-ripple conditions typical of SVG operation. The metal-shell, dry-resin-filled construction also gives the capacitor strong mechanical robustness and consistent thermal performance across its operating range, which matters in cabinet-mounted power electronics where space and airflow are often constrained.

The System-Level Impact of Low ESR on SVG Performance

Faster dynamic response. Lower ESR and ESL together reduce the total impedance of the capacitor branch, stabilizing the DC bus voltage and giving the IGBTs a "cleaner" platform to switch against. This directly improves the SVG's ability to respond to fast-changing reactive power demand, which is a critical requirement in applications like electric arc furnaces, rolling mills, and renewable energy plants where load conditions can shift within a single AC cycle.

Higher system efficiency. Less energy is dissipated as heat inside the support capacitor itself, which improves overall converter efficiency and eases thermal design pressure on the rest of the system. In multi-megawatt SVG installations, even a small reduction in capacitor-stage losses translates into meaningful energy savings over the equipment's operating life.

Better long-term reliability. Our DKMJ-S uses copper bolt/screw terminals, a metal-shell dry-resin-filled construction, high-voltage self-healing capability, and high dv/dt withstand. Combined with its 100,000-hour design life, it significantly reduces the risk of unplanned downtime caused by DC-link capacitor aging, which is critical for grid-side compensation, PV inverters, and wind converters that run continuously around the clock with limited maintenance windows.

Application Scenarios

The combination of low ESR, high ripple current tolerance, and long service life makes our DKMJ-S suitable across a broad range of power quality and renewable energy applications, including:

• Grid-side SVG/STATCOM systems for voltage support and power factor correction at substations

• Industrial reactive power compensation for steel mills, mining equipment, and other heavy inductive loads

• Renewable energy converters, including PV inverters and wind power converters, where reactive support and grid-code compliance are increasingly required

• Rail and traction power systems, where compact size and high reliability under vibration are essential

• UPS and energy storage systems, where DC-link stability directly affects output waveform quality

Market Momentum Behind Reactive Power Compensation

The demand for SVG and related reactive power compensation equipment is accelerating alongside the global renewable energy build-out.

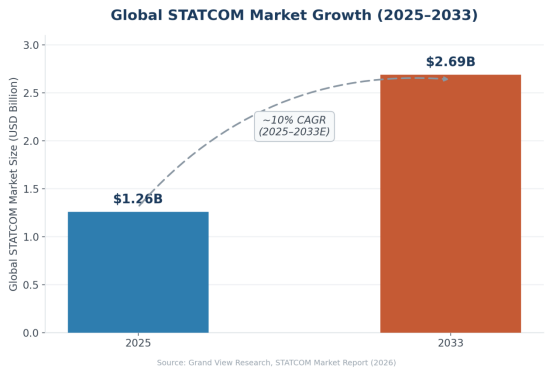

Grand View Research projects the global STATCOM market to grow from roughly $1.26 billion in 2025 to $2.69 billion by 2033, driven largely by the need to manage voltage fluctuations as wind and solar penetration increase, while IndexBox points to stricter grid codes that now mandate dynamic voltage support for new solar and wind connections. As SVG deployment scales to meet these requirements and installations shift toward more compact, higher-power-density modular designs, the performance and reliability of the DC-link capacitor becomes an even more direct driver of whether an SVG system meets its compliance and lifetime targets in the field.

Conclusion

Reactive power compensation optimization starts with capacitor material selection, since the ESR, ESL, and ripple current handling of the DC-link support capacitor set the real ceiling on an SVG's dynamic response, efficiency, and reliability. At CRE New Energy, our DKMJ-S series is purpose-built to meet these demands for SVG and other power quality applications. For custom solutions, please contact us.

Frequently Asked Questions

Q1：Can DKMJ-S directly replace the electrolytic DC-link capacitor in an existing SVG design? In most cases, yes, across the majority of low- and medium-voltage SVG platforms. Since mechanical dimensions and terminal layout vary by rating, confirm fit with our technical team before finalizing the replacement.

Q2：What ripple current and voltage conditions is DKMJ-S rated for in continuous SVG duty? It's built for high-frequency, high-ripple duty, with tgδ ≤0.003 at 100Hz and a withstand voltage of 1.5x rated voltage for 60s. Its 100,000-hour rated life is specified at hot-spot ≤70°C; actual life depends on your ripple current profile, so we can help size the right capacitance and voltage rating.

Q3：How do I request a quote or datasheet for a specific SVG project? Request the datasheet, drawings, or a project quote directly at www.crecapacitors.com, or reach out to our engineering team to evaluate custom capacitance, voltage, or terminal configurations.

Note：

Market growth figures cited in this article (STATCOM and static var compensator market data) are drawn from third-party industry research published by Grand View Research and IndexBox as of 2026, and are provided for general reference only; they are not our own forecasts, and actual market conditions may vary.
