What Sets AC-Filter Capacitors Apart in Modern Electrical Systems

When you want things to work well in electrical systems, filter capacitors are very important. You can see filter capacitors in energy storage machines, variable frequency drives, and renewable energy systems. These devices help make power better, lower electrical noise, and keep things steady in tough places. CRE is a top company with smart design and building, giving ac-filter capacitor choices that make things work better and last longer. As smart grids and renewable energy get bigger, the right filter capacitor helps your system work well and stay strong.

Key Takeaways

• Filter capacitors help electrical systems by taking away unwanted signals. They also keep the voltage steady. This makes devices work better and last longer.

• Picking the right filter capacitor size is very important. Use the formula C = I / (f × V_r) to find the right capacitance. This helps you get what you need.

• Checking filter capacitors often can stop overheating and problems. Plan regular checks and make sure there is good airflow. This keeps systems working well.

• There are different types of filter capacitors for different jobs. Electrolytic capacitors are good for power supply filtering. Ceramic capacitors work well with high-frequency uses.

• Buying good filter capacitors saves money over time. They last longer and keep your system safe from damage caused by bad power quality.

AC-Filter Capacitor Functions

Filtering AC Signals

Filter capacitors help your electrical systems work better. They remove signals you do not want and keep the good ones. When you put a filter capacitor in your circuit, you can:

• Cut down on stray signals that cause trouble.

• Make signals clearer by blocking high-frequency noise.

• Use the way capacitors change with frequency to filter signals well.

Filter capacitors are important in ac-to-dc conversion. They smooth out the ac ripple after rectification. This smoothing gives you steady voltage, which helps circuits work right. If you want your energy storage device to last, you need a filter capacitor that handles high ripple current. This helps lower ripple and keeps your system steady.

You see output filter capacitors in power supplies a lot. These capacitors help keep circuits stable by lowering ripple. Picking the right filter capacitor makes things work better and keeps your equipment safe.

Reducing Electrical Noise

Filter capacitors help stop electrical noise in your circuits. They work because their impedance changes with frequency. A filter capacitor blocks low-frequency signals, like direct current, but lets high-frequency signals go through. This lets you pick which signals stay and which get blocked.

Using filter capacitors lowers ripple and noise that can hurt electronics. You also get more stable and reliable systems. Filter capacitors with steady capacitance and high ripple current handling work best in tough places. You can count on these parts to keep circuits quiet and working well.

Tip: Always pick a filter capacitor that fits your system for the best results.

Unique Features of Filter Capacitors

Construction and Materials

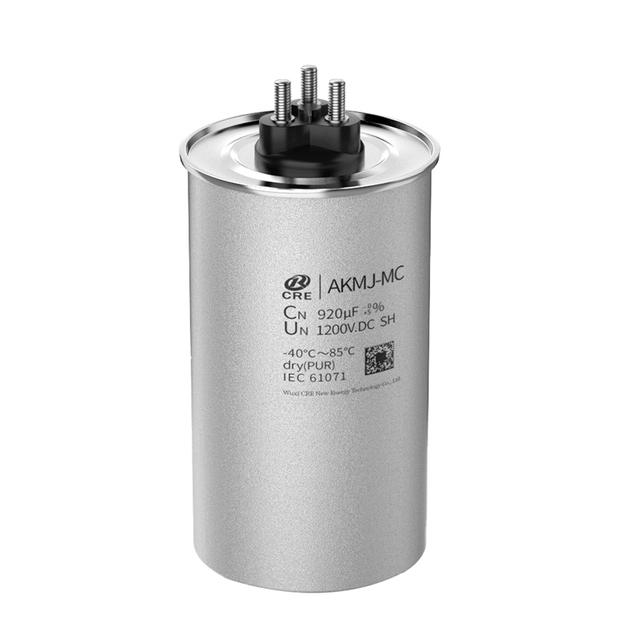

Filter capacitors are different because of how they are made. CRE NEW ENERGY PTE. LTD. has three main types. The AKMJ-MC has a round aluminum case. The AKMJ-S uses a strong metal case. The AKMJ-PS comes in a plastic box that is easy to use. Each type has special materials and shapes for different jobs. The AKMJ-MC is good when you need something strong but not heavy. The AKMJ-S is best for places that are rough or harsh. The AKMJ-PS works in many setups and is very flexible.

CRE uses special steps to make sure each filter capacitor is high quality. Here is a table that shows the main steps in making them:

These steps help make filter capacitors that last a long time. They also keep their capacitance steady and handle high ripple current. You can trust these parts to work well, even when things get tough.

Performance in Power Electronics

Filter capacitors do important jobs in power electronics. They smooth out ac ripple and block dc. When you use them in your power supply, you get less ripple. This makes your signals better and helps your equipment last longer.

Here are some good things about using filter capacitors in power electronics:

• They smooth out ac signals and block dc.

• They lower ripple voltage and keep signals clean.

• They make power quality better and cut down on ripple problems.

• They help your equipment last longer by lowering voltage swings.

• They help with new electronics in renewable energy and electric cars.

Filter capacitors are very important in ac-to-dc conversion. They keep your circuits safe and steady. If you use a good filter capacitor, you get more stable circuits and less trouble from ripple.

Application Versatility

You can use filter capacitors in many places. In factories, they help machines run better by cutting down on ripple and noise. In renewable energy, they keep voltage steady in solar and wind systems. This helps energy storage devices work better and last longer.

Filter capacitors are also used in high-frequency inverters. They help green energy systems work well and save energy. In photovoltaic systems, they keep the dc bus voltage steady. They also protect important parts from high currents. This means your system works better and is more reliable.

Note: Filter capacitors help your equipment work better and last longer. They improve efficiency and stability in many different jobs.

You can trust CRE NEW ENERGY PTE. LTD. to give you the right filter capacitors. They have what you need for industry, renewable energy, or advanced electronics.

Choosing the Right Filter Capacitor Size

Calculating the Size of a Power Supply Filter Capacitor

You need to pick the right filter capacitor size. This helps your system work well and keeps equipment safe. If your capacitor is too small, you get too much ripple. If it is too big, you waste space and money.

Here are steps to find the right size for a power supply filter capacitor:

1. Understand Load Requirements
   First, check how much current your load needs. You also need to know how much ripple voltage your circuit can handle.

2. Use the Basic Formula
   The formula to find the size is:
   C = I / (f × V_r)

• C is the capacitance in farads (F)

• I is the load current in amperes (A)

• f is the frequency in hertz (Hz)

• V_r is the ripple voltage in volts (V)

3. Example Calculation
   If your load current is 1A, ripple voltage is 1V, and frequency is 100Hz, then:
   C = 1A / (100Hz × 1V) = 0.01F or 10,000 µF

4. Consider Additional Factors
   Make sure your filter capacitor’s voltage rating is higher than your system’s highest voltage. Check the temperature rating, ESR, and ripple current rating. These things help your capacitor last longer and keep your system safe.

Tip: Always check your math and ratings before picking a filter capacitor. This helps you avoid problems later.

Selection Criteria

You need to look at a few things when picking the right filter capacitor size. The right choice helps your device work better and keeps it safe from ripple and noise.

Here is a table that shows what to check, especially for high-frequency jobs:

You also need to match the filter capacitor type to your system. Here are some tips:

• Filter capacitors help lower noise and keep voltage steady.

• Electrolytic capacitors are good for power supply filtering. They handle high voltages and have high capacitance.

• Ceramic capacitors are best for high-frequency jobs, like signal processing.

• Film capacitors give stable performance, which is good for audio and precision filtering.

Note: Picking the right filter capacitor for your design helps you get the best results and reliability.

Common Sizing Errors and How to Avoid Them

You can have problems if you do not pay attention when picking a filter capacitor size. Here are some common mistakes:

• Thinking all capacitors are the same can cause errors.

• Using only standard parts from a library may be a problem if those parts are hard to find.

• Bad layout on your circuit board can cause EMI, ringing, or power issues.

• Ignoring rules can make your system fail tests.

• Not thinking about space can waste resources in capacitor banks.

• Forgetting about heat can make your capacitor fail sooner.

• Not matching your breaker system can create risks.

Tip: Take your time to plan and check every part of your filter capacitor choice. This helps you avoid costly mistakes.

Cost Considerations

Buying good filter capacitors may cost more at first, but you save money later. Good capacitors last longer and protect your system from damage caused by bad power quality. Fixing or replacing broken parts costs more than buying a good filter capacitor.

Remember: The right filter capacitor keeps your system working well and saves you money over time.

Reliability and Maintenance

Longevity and Quality

You want your filter capacitor to last and work well. CRE NEW ENERGY PTE. LTD. uses advanced methods and good materials. Their filter capacitors meet high standards. These parts last longer than regular electrolytic capacitors. You can use them in PV inverters, wind converters, and electric cars. They give better performance and last longer. This matches what the industry wants.

A strong design helps your filter capacitor do tough jobs. Features like low ESR and ESL, high ripple current handling, and self-healing film technology help a lot. These features let your filter capacitors work well, even with high ripple or stress.

You get more stability and fewer problems with strong filter capacitors. This means less fixing and more time with your system working.

Tip: Pick a good filter capacitor from a trusted brand like CRE NEW ENERGY PTE. LTD. This helps you avoid early failures and keeps your equipment safe.

Maintenance Best Practices

You can keep your filter capacitors working longer by following easy steps. Regular care helps you avoid problems like overheating, surges, and ripple issues. Here are some best practices:

You should also look for signs of trouble. Overheating, voltage changes, and too many on/off cycles can make your filter capacitor fail. Keeping your system clean and cool stops dirt and heat problems. Using a filter capacitor with a higher voltage rating and installing it right protects against ripple and surges.

Note: Good care and smart choices help your filter capacitors last longer and keep your system safe.

You can find ac-filter capacitors in many modern systems. They help in different ways, shown in the table below:

Picking the right filter capacitor makes your system work better and last longer. Look for the right voltage rating, low ESR, and a wide temperature range. CRE NEW ENERGY PTE. LTD. has smart designs and strong quality. You can find more help on how to pick the best size and type for your needs.
