Film Capacitors in Humanoid Robot Hands: The Role of DC-Link Capacitors in Tendon-Driven Actuators

Recently, a tendon robotic arm designed by Astra (via GPT-6) has been gaining significant attention across social media platforms. The Astra-generated tendon designs and movement dexterity showcased in these demos have largely broken conventional perceptions. However, making a robotic hand move is only part of the engineering challenge.

For robot manufacturers and actuator developers, the bigger question is how to make each actuator operate reliably within a highly constrained space.

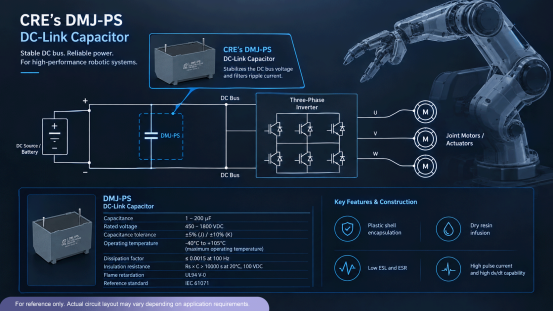

Figure 1: Typical DC-Link Circuit Application for Robotic Actuators

A humanoid hand may combine motors, inverters, sensors, control electronics and power management within a compact mechanical structure. As actuator designs become smaller and more dynamic, the power electronics inside them must also deliver stable, reliable performance.

This is where film capacitors can play an important role.

For tendon-driven robotic hands, one of the most relevant applications is the DC-Link capacitor, which supports the inverter's DC bus and helps manage the electrical demands created by motor switching.

Why Tendon-Driven Robotic Hands Change Actuator Design

In a conventional robotic hand, motors may be positioned close to the fingers. This can increase the weight and inertia at the distal end of the hand.

Tendon-driven architectures take a different approach. Motors can be located in the palm, wrist or forearm, while tendons transmit mechanical force to the fingers.

This architecture can help create more compact and agile robotic hands.

However, moving the motor away from the fingertip does not eliminate the need for power electronics. The actuator still requires an inverter, DC bus and associated protection and filtering components.

As a result, engineers need to consider several factors simultaneously:

· Power density

· Switching performance

· Ripple current

· Thermal management

· Electromagnetic compatibility

· Component size and installation space

The capacitor therefore becomes part of the overall actuator design, not just an individual passive component.

What Does a DC-Link Capacitor Do in a Robotic Actuator?

A motor inverter requires a stable DC bus to operate the switching stage.

The DC-Link capacitor is connected across the DC bus and helps stabilize the bus voltage while handling ripple current generated by the inverter switching process.

In a robotic actuator, this becomes particularly important because the power stage may experience rapid changes in electrical load during dynamic motor operation.

A suitable DC-Link capacitor can help support:

· DC bus voltage stabilization

· Ripple current handling

· High-frequency current response

· Reliable inverter operation

· Compact power-electronics integration

For actuator designers, capacitor selection should therefore consider more than capacitance alone.

Figure 2: High-Performance Film Capacitors Engineered for Humanoid Robotics

Key parameters include:

· Capacitance

· Rated voltage

· Ripple current

· ESR and ESL

· Operating temperature

· Physical dimensions

· Mounting and connection design

The right combination depends on the actual electrical architecture of the actuator.

Why DC-Link Capacitor Selection Matters in Robotic Actuators

The space available inside a robotic actuator can be very limited.

At the same time, the capacitor must operate under the electrical and thermal conditions created by the inverter. This creates a design challenge: the capacitor needs to satisfy electrical requirements while also fitting within the mechanical structure.

For compact robotic applications, engineers may need to evaluate:

Electrical Performance

The DC bus voltage, required capacitance and ripple current determine whether a capacitor is suitable for the inverter.

ESR and ESL are also important considerations, particularly where fast switching and high-frequency current are involved.

Thermal Conditions

The capacitor operates within the actuator's thermal environment. Ambient temperature, heat generation, cooling method and enclosure design should therefore be considered during component selection.

Mechanical Integration

Available space, capacitor dimensions, terminals and mounting structures can directly affect whether a standard component can be integrated into the actuator.

This is particularly relevant to humanoid robots, where component size and mechanical integration can be as important as electrical specifications.

CRE DMJ-PS DC-Link Capacitor for Compact Power Electronics

CRE's DMJ-PS Plastic Box DC-Link Capacitor is designed for DC-Link applications where reliable electrical performance and compact integration are important.

The DMJ-PS series covers:

· Capacitance: 1 μF to 200 μF

· Rated voltage: 450 VDC to 1,800 VDC

· Construction: Dry resin encapsulation

· Electrical characteristics: Low ESR and ESL

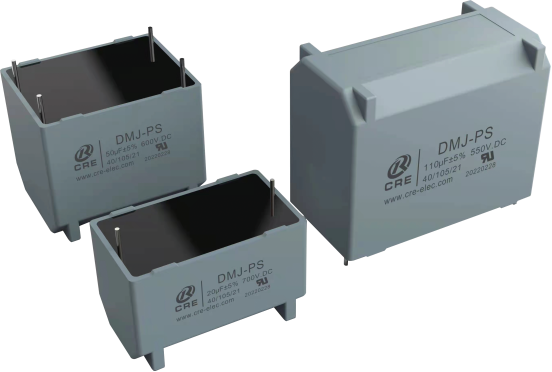

Figure 3: CRE DMJ-PS DC-Link Capacitor & Operating Benefits for Robotics

These characteristics make the DMJ-PS a potential DC-Link solution for compact power electronics, including applications where space, switching performance and ripple current handling need to be considered together.

For robotic actuators, however, product selection should always start with the actual system requirements.

The DC bus voltage, capacitance requirement, ripple current, switching frequency, temperature, cooling conditions, available installation space and electrical layout all need to be evaluated before selecting the capacitor.

In other words, the goal is not simply to place an existing capacitor into a robot.

The goal is to identify the right DC-Link solution for the actuator architecture.

What About Snubber and EMC/EMI Capacitors?

Beyond DC-Link applications, robotic actuators require careful management of switching transients and electrical noise.

High-speed inverter switching often causes voltage overshoot and ringing due to parasitic inductance. CRE's SMJ-P Plastic Box IGBT Snubber Capacitor mitigates these transients with low ESR/ESL and high dv/dt capability (though circuit layout remains crucial for optimal performance).

Additionally, high-frequency noise from motor inverters can interfere with sensitive feedback and communication interfaces. EMC/EMI filter capacitors effectively suppress this conducted noise, with the exact filtering strategy depending on the noise source and system sensitivity.

How to Choose Film Capacitors for Humanoid Robots

Humanoid robotics demand more from components than traditional power electronics. A catalog specification alone may not be enough.

Depending on the actuator architecture, engineers may need to consider:

· Compact size: Low profile and lightweight to fit tight spaces and reduce overall robot load.

· High performance: High ripple current capability and low ESL to support fast switching.

· High reliability: Stable performance under repeated operation, thermal reliability in compact enclosures, and mechanical robustness.

· Flexible design: Customized terminals and mounting structures.

Engineers must match these components to actual operating conditions such as DC bus voltage, capacitance, ripple current, switching frequency, temperature, cooling, and electrical layout. Application matching is especially critical when developing next-generation robotic actuators.

From Robotic Hands to Other Robotic Actuators

The potential application of compact film capacitors extends beyond humanoid hands.

Similar power-electronics requirements can appear across humanoid hands, wrists, arms, legs, collaborative robots, exoskeletons, and precision servo systems.

As robotic systems become more compact and dynamic, their power electronics also need to become smaller, reliable and efficient.

Film capacitors can support this development through different functions.

DC-Link: Stabilizes the DC bus and manages ripple current.

Snubber: Helps control switching transients and protect power devices.

EMC/EMI: Helps reduce electrical noise and support reliable sensing and control.

For many robotic actuator architectures, the DC-Link remains a key starting point because it directly connects the energy source with the motor inverter.

CRE Film Capacitor Solutions for Robotic Actuators

CRE develops film capacitor solutions for demanding power electronics applications, including:

• DC-Link

• IGBT/GTO Snubber

• AC Filter

• EMC Filter

Its product portfolio includes DC-Link and power film capacitor series such as DMJ-MC, DMJ-PS, DKMJ-S, DMJ-MT and SMJ-P.

For robotic actuators, these solutions can be evaluated based on the specific requirements of the inverter and actuator design, including electrical, thermal and mechanical conditions.
