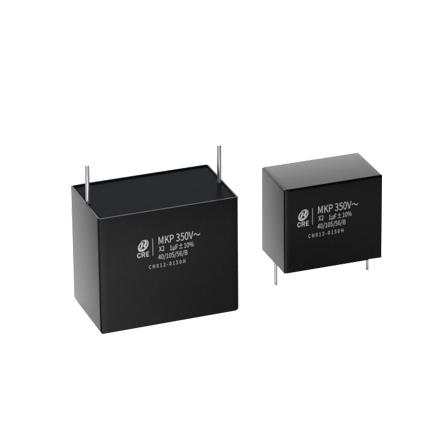

What Makes EMC-Filter Capacitors Essential for Reliable Electronics

You want your devices to always work well, but electromagnetic interference can cause problems. Studies say that 50% to 90% of electronic devices do not pass EMI testing the first time. In hard places like AC power systems, things like electric motors, switched-mode power supplies, and voltage regulators make strong EMI. An emc-filter capacitor from CRE helps you follow tough electromagnetic compatibility rules. If you pick a good filter capacitor, you keep your electronics safe and make sure they work well during strict international tests.

Key Takeaways

• EMC-filter capacitors are very important. They block unwanted electromagnetic interference (EMI). This helps your devices work well. It also helps them pass international tests.

• Using bypass capacitors near power pins is helpful. It keeps power lines clean. It lowers high-frequency noise. This makes the circuit more stable.

• Pick capacitors with low ESR and ESL. This makes filtering better. It also protects against voltage spikes. This is important in tough environments.

• Always look at safety ratings like UL, VDE, and IEC. This helps you pick safe capacitors. These ratings show the capacitors meet strict rules. They also show the capacitors work well.

• Think about the frequency response of your capacitors. This helps block EMI in many uses. It is very important in factories and other big places.

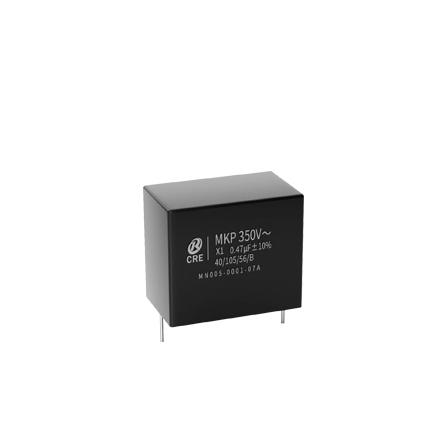

EMC-Filter Capacitor Importance

EMI Suppression

It is hard to keep electronics safe from electromagnetic interference. EMI can make devices stop working or lose important data. An emc-filter capacitor helps block signals you do not want. It keeps your circuits steady and safe. Using an emc filter lowers the noise in your system.

• A low-pass filter with a capacitor has special frequency features. The attenuation range shows a 20dB/dec slope. This means when the frequency goes up, the insertion loss changes by 20dB for every ten times the frequency.

• If you make the electrostatic capacitance ten times bigger, the insertion loss also changes by 20dB in the attenuation range. This proves that more capacitance helps reduce EMI.

You can check the table to see how different EMI suppression methods work:

When you use an emc-filter capacitor, you focus on certain noise sources. This helps your devices work better. Bypass capacitors also work better. They block high-frequency signals and keep power lines clean.

Tip: Put bypass capacitors close to the power pins of your chips. This helps block EMI and keeps your system steady.

Device Reliability

You want your electronics to work every time you use them. An emc filter is important for making devices reliable. Adding a filter capacitor protects circuits from sudden spikes and bad signals.

The table shows how different industries use emi filters and emc-filter capacitors:

Using an emc-filter capacitor makes signals better and devices last longer. In medical devices, you keep signals clear and patients safe. In military and aerospace, you meet strict rules and keep equipment working in hard places.

If you pick the right bypass capacitor and put it in the best spot, your electronics become more reliable. Your devices can pass international EMI tests and keep working even in tough conditions.

How EMC Filter Works

Filtering Unwanted Signals

It is hard to keep electronics safe from emi. High-frequency noise can get into circuits and cause trouble. An emc-filter capacitor helps block these signals. The filter gives high-frequency noise a way out of important circuits.

Here is how a filter capacitor protects your devices:

• You put capacitors to ground. They send high-frequency noise away from the load.

• Inductors stop high-frequency interference but let low frequencies go through.

• Ferrite chokes soak up extra high-frequency noise. They give unwanted noise an easy path.

A bypass capacitor is often near a chip’s power pin. This keeps power lines clean and steady. The frequency features of a filter capacitor matter a lot. A low-esl capacitor reacts fast to high-frequency noise. This makes your emi filter work better.

Tip: Put your low-esl capacitor very close to the emi source. This helps your emc filter work its best.

Operating Principles

You may wonder how an emc filter works. The main idea is simple. The filter uses different parts to split good and bad signals. Each part does something special.

The table below shows how a filter capacitor works with other emi filter parts:

An emc filter works well when you use the right mix of parts. The frequency features of a filter capacitor and a low-esl capacitor help block high-frequency noise. If you know how a filter capacitor works, you can make better circuits. Your devices will resist emi and keep working well.

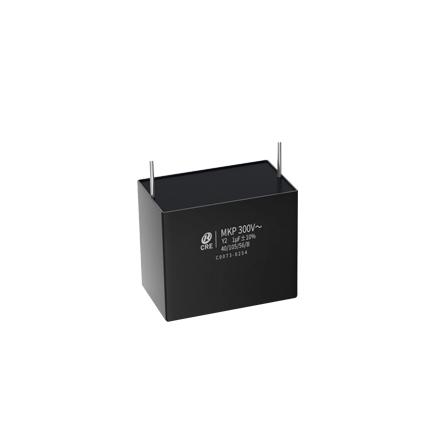

Filter Capacitor Features

Low ESR/ESL

You want your devices to work well all the time. ESR and ESL in a filter capacitor help block emi. Low ESR means the capacitor does not waste much energy. It makes filtering better. Low ESL helps block high-frequency noise, especially above 100MHz.

• Ceramic capacitors usually have ESR less than 10 milliohms. Electrolytic capacitors can have ESR from 50 milliohms to a few ohms.

• Multilayer ceramic capacitors (MLCCs) can have ESL as low as 0.5 nanohenries. Regular electrolytic capacitors often have ESL between 5 and 10 nanohenries.

If you use a filter capacitor with low ESR and ESL, you block emi better. Your energy storage capacitor works more efficiently. This protects against voltage spikes and keeps your system steady.

Tip: Pick capacitors with low ESR and ESL. They give better protection and last longer, especially in factories.

Frequency Response

Your emc filter needs to block unwanted signals at many frequencies. The frequency response shows how well a filter capacitor works in different jobs. In factories, emi often happens between 150kHz and 30MHz. Your energy storage capacitor must handle these frequencies to keep devices safe.

CRE NEW ENERGY PTE. LTD. makes emc-filter capacitors for these needs. Their strong design and careful testing help protect AC power systems. You can use these capacitors in many places, like machines or home electronics. Filter capacitors help with blocking noise, storing energy, and keeping voltage steady.

Note: Good frequency response means your energy storage capacitor blocks emi and keeps your system working well.

Safety Ratings

You want your devices to be safe everywhere. Safety ratings show which capacitors follow strict rules. When you pick an emc-filter capacitor, look for ratings like UL, VDE, and IEC. These ratings prove the capacitor can handle electrical dangers and work well in important jobs.

CRE NEW ENERGY PTE. LTD. tests every emc-filter capacitor to meet these standards. You get strong protection for your devices in AC power systems and factories. Filter capacitors are used in medical, military, and aerospace fields where safety and reliability are very important.

Tip: Always check safety ratings when you pick emc components. This makes sure your energy storage capacitor gives the best protection everywhere.

You also need to think about the environment. High temperature, humidity, and vibration can change how your energy storage capacitor works. CRE NEW ENERGY PTE. LTD. uses good materials and strong designs to protect against these problems. Your capacitor will last longer and work better in tough places.

• High temperatures can make capacitors wear out faster and increase resistance.

• Low temperatures can cause cracks and let water in.

• High humidity can lower insulation and cause leaks.

• Vibration and shock can change capacitance and break the capacitor.

You can trust CRE NEW ENERGY PTE. LTD. for emc components in hard jobs. Their capacitors give strong protection, good energy storage, and steady performance.

EMI Filter Components and Applications

Capacitor Types

There are many kinds of emi filter components in circuits today. Each kind does something special. DC-Link Capacitors from CRE NEW ENERGY store energy. They help keep voltage steady in power systems. Snubber Capacitors protect parts from voltage spikes. They also help lower noise. You will see ceramic, film, and electrolytic capacitors in emi filter designs. These parts work together to block unwanted emi. They help keep your devices safe.

Bypass and Decoupling

Bypass and decoupling capacitors help emi filters work better. These emi filter parts keep circuits stable and quiet.

• Decoupling capacitors block noise and interference. This helps signals pass through more clearly.

• They stop interference between parts. This makes your circuit work better.

• Bypass capacitors send high-frequency noise to ground. This keeps noise away from important parts.

• They help keep your circuit steady and working right.

• Decoupling capacitors also smooth out sudden changes in current. This helps microcontrollers and other chips.

Tip: Put a decoupling capacitor close to each chip’s power pin. This keeps your power supply clean and your circuit running well.

Design Considerations

You need to think about a few things when you pick and place emi filter parts. Good emi filter design helps you get the best results.

1. Pick capacitors that match the noise frequency and clock speed in your design.

2. Use more than one capacitor to cover many frequencies.

3. Put at least one decoupling capacitor close to each IC power pin.

4. Place bypass capacitors on the same PCB plane as the chip.

5. For systems with different clock speeds, use capacitors with different values. Separate them with slits in the power plane.

6. In systems with many clock speeds, use two capacitors in parallel with a 2:1 ratio. This helps block more noise.

Here are some tips to help you:

• Try different setups because unknown things can change how well it works.

• Keep connections short to lower extra inductance.

• Put emi filter parts close to the signal source.

• Avoid routes that let noise get into your signals.

• Put filter parts right at entry connectors to stop emi from getting into your system.

Use these tips to make emc filters work better in your projects. When you pick the right emi filter parts and put them in good spots, your devices will work better and last longer.

You can keep your electronics safe if you pick good EMC-filter capacitors. Good capacitors block emi and protect from voltage spikes. They also last a long time.

• Some capacitors fix themselves and use strong materials like metallized film. These help important systems work without stopping.

• Safety-rated capacitors help lower the chance of shock or soaking.

• Companies like CRE NEW ENERGY check ripple current, how long they last, and if they can handle big surges.







Look at the table below to see what features you should think about:

Tip: Always check ratings and rules before you use capacitors in your projects.
