The Role of Resonant Capacitors in Power Electronics

Resonant Capacitors are essential to efficient power conversion because they exchange energy with inductors at a controlled frequency. Rather than simply smoothing a DC bus or absorbing an occasional transient, they become part of the main power-transfer path. Their behavior affects switching loss, circulating current, thermal stress, output regulation, and electromagnetic interference. This article explains their role in power electronics, the conditions they must withstand, the applications that depend on them, and the practical criteria engineers should use to select them.

Key Takeaways

• Resonant Capacitors work with inductors to establish the operating behavior of LC, series-resonant, parallel-resonant, and LLC circuits.

• Capacitance is only one selection factor; current, voltage, frequency, temperature, ESR, and ESL must be evaluated together.

• Low ESR helps limit heat caused by RMS current, while low ESL supports more predictable high-frequency behavior.

• Film, ceramic, and capacitor-bank designs can all be appropriate, depending on topology, electrical stress, and installation constraints.

• A reliable design begins with measured or simulated tank waveforms rather than nominal voltage and capacitance alone.

Why Resonance Matters in Power Electronics

In a hard-switched converter, a semiconductor may change state while significant voltage and current overlap. That overlap produces switching loss, raises device temperature, and can create steep edges that excite parasitic inductance. The result may include ringing, voltage overshoot, EMI, and additional stress on both switching devices and passive components.

Resonant conversion takes a different approach. It uses the controlled exchange of energy between inductors and capacitors to shape voltage and current waveforms. When correctly designed, the converter can switch nearer to a zero-voltage or zero-current condition. This can reduce switching loss and make high-frequency operation more practical.

The resonant capacitor is a working element in this energy exchange. It stores electric-field energy, releases it into the inductor, and receives energy back as the inductor current changes. The capacitor’s electrical characteristics directly influence the resonant frequency, quality factor, circulating current, and thermal performance of the power stage.

How Resonant Capacitors Work

A resonant capacitor performs several connected functions within a power-electronics circuit.

First, it helps set the resonant frequency with the associated inductance. A change in capacitance shifts that frequency, which can alter converter gain, tank current, and soft-switching conditions. The required tolerance depends on how sensitive the converter is to operating-point variation.

Second, it carries reactive current. In many resonant circuits, this current can be much larger than the output current. A capacitor may appear suitable based on its voltage rating but still overheat if its RMS-current capability is too low for the actual tank waveform.

Third, it controls the impedance characteristic of the resonant path. In a series arrangement, capacitive and inductive reactance cancel near resonance, allowing efficient current transfer. In a parallel arrangement, the internal capacitor-inductor network can support high current or voltage while presenting a different impedance to the source.

Finally, it influences the cleanliness of the waveform. Losses, parasitic inductance, and non-linear behavior can shift the resonant point, increase heating, and change switching conditions. These effects become especially important in high-frequency resonant circuits, where component parasitics are no longer secondary details.

The Resonant Tank Circuit in Practice

A resonant tank circuit combines capacitors and inductors so energy repeatedly moves between electric and magnetic fields. Its topology determines both the system performance and the stress imposed on the capacitor.

In a series-resonant converter, the capacitor and resonant inductor are placed in series with the power-transfer path. Near the designed resonance point, the effective impedance is low. This configuration can be useful where controlled current transfer is important, although operation above and below resonance changes the circuit’s gain and current behavior.

An LLC resonant converter adds magnetizing inductance to the resonant capacitor and series resonant inductance. It is widely used in isolated power supplies because it can provide soft-switching operation across a useful input and load range. In this topology, the resonant capacitor directly affects the gain curve, circulating current, and switch-voltage conditions.

Parallel-resonant designs can be valuable where a high AC voltage across the resonant network is desired. However, their internal circulating current and voltage can become substantial. The capacitor must therefore be selected according to the full tank waveform, not merely the DC-bus voltage.

Why Polypropylene Film Capacitors Are Often Used

Polypropylene film capacitors are often selected for demanding resonant work because they can offer low dielectric loss and stable behavior in high-current, high-frequency conditions. Depending on the construction, they can also be well suited to repetitive AC and pulse duty.

The design decision should not be reduced to “film versus ceramic.” Ceramic capacitors can offer compact dimensions and low parasitic inductance in suitable voltage and capacitance ranges. In some designs, a series-parallel ceramic network is appropriate. Its effective capacitance, voltage behavior, thermal performance, mounting method, and mechanical environment still need careful review.

Film capacitors can be attractive where the converter requires greater capacitance, higher AC-current capability, high voltage endurance, or robust operation in an industrial environment. The right technology is the one that meets the complete electrical, thermal, mechanical, and lifetime requirement—not simply the most familiar dielectric.

Resonant Capacitor vs. DC-Link Capacitor

Product Advantages: Why Choose CRE Resonant Capacitors?

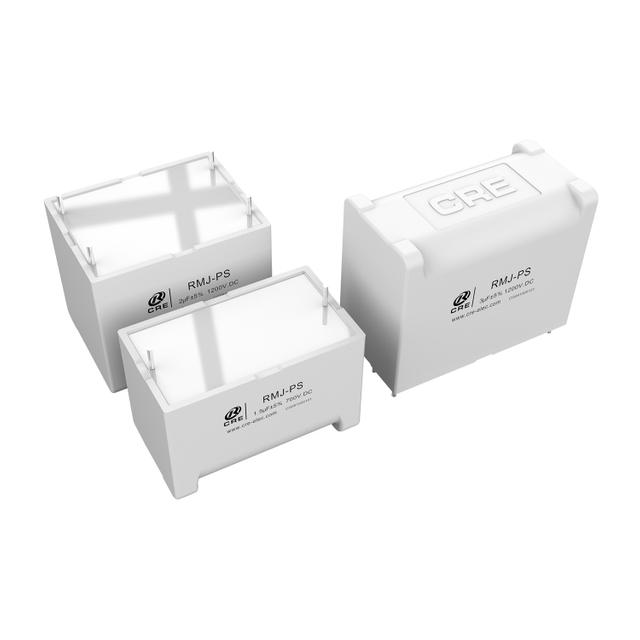

CRE’s resonant capacitor range uses polypropylene (PP) film dielectric and is designed for high-frequency resonant circuits, offering low dielectric loss, low ESR, low ESL, and strong voltage and current-handling capability.

Key Characteristics：

· Capacitance range: 1–8 μF

· Rated voltage: 1200–2000 VDC

· Low ESR and low ESL

· High-frequency current capability

· High pulse-current and dv/dt capability

· Copper-nut terminals

· Resin-sealed plastic construction

For projects where standard dimensions, terminals, electrical values, or package configurations do not meet the final design requirements, CRE also provides custom capacitor solutions.

Final capacitor selection should be based on the actual electrical and thermal conditions of the application, including operating voltage, RMS current, frequency, cooling conditions, insulation requirements, installation constraints, and expected lifetime.

Applications Across Power Electronics

LLC Resonant Converters and DC/DC Power Supplies

In an LLC resonant converter, the capacitor helps define the relationship between switching frequency, converter gain, and tank current. It must tolerate repetitive alternating current while preserving predictable behavior across line, load, and temperature variation.

Engineers should analyze normal operation as well as light-load, overload, start-up, burst-mode, and fault-recovery conditions. Peak capacitor stress does not always occur at nominal full load. Time-domain simulation can reveal the actual voltage and current envelope across the converter’s intended operating range.

Induction Heating Systems

Induction heating is a demanding application because the work coil and heated material form a load that can change during operation. The capacitor bank and coil must remain appropriately matched as temperature, coupling, and material properties evolve.

Induction heating capacitors are designed for this application environment, where reliable energy transfer and circuit performance are central design requirements. A complete evaluation should consider the work-coil inductance range, cooling method, terminal connections, harmonic content, capacitor current, and expected operating cycle.

Welding and Industrial Power Supplies

Resonant operation is used in welding equipment, switched-mode power supplies, industrial generators, and high-pulse systems. These applications can subject the capacitor to high-frequency current, large current peaks, and elevated ambient temperature at the same time.

The product datasheet should be used to confirm suitability for the final application. Published parameters are a valuable starting point, but the actual converter waveform, installation arrangement, and cooling conditions determine whether the selected component is appropriate.

High-Frequency Power Conversion

Beyond LLC converters, resonant capacitors are used in series- and parallel-resonant converters, high-frequency inverters, and wireless power systems. They help control energy transfer and reduce switching stress.

At higher frequencies, ESR, ESL, and circuit layout have a greater effect on heating and waveform stability. Selection should therefore consider RMS current, dv/dt, connection design, and cooling conditions.

Renewable Energy and EV Power Systems

Resonant techniques can support efficient conversion in renewable-energy equipment, battery charging, motor drives, wireless power systems, and high-density industrial power supplies. These systems differ in topology, but all require controlled energy transfer and stable high-frequency performance.

Higher switching frequencies can reduce magnetic-component size and improve power density. They also increase the importance of capacitor losses, layout, insulation coordination, and thermal management. Resonant Capacitors support these design goals when their capability is matched to the full operating requirement.

A Practical Selection Process

Begin with the circuit, not with a catalog filter. Define the intended resonant frequency, inductance range, input and output range, transformer characteristics, load variation, and switching strategy. Calculate a preliminary capacitance, then simulate capacitor voltage and current over the complete operating envelope.

Next, compare those stresses with the candidate capacitor’s rated voltage, allowable RMS current, peak-current capability, temperature limits, ESR, ESL, tolerance, and service conditions. Apply a margin that is justified by the product specification and the application’s verified waveform rather than using an arbitrary universal percentage.

Then review the physical implementation. Confirm creepage and clearance, terminal arrangement, mounting method, cooling path, vibration exposure, enclosure temperature, and wiring inductance. In a high-current resonant loop, low-resistance and low-inductance connections are as important as the capacitor body itself.

Finally, validate the design on hardware. Measure capacitor voltage and current using appropriate probes, verify resonant frequency and switch waveforms, and assess capacitor temperature under the worst credible conditions. Test input variation, load steps, start-up, and fault recovery before finalizing the component choice.

Common Selection Mistakes

A frequent mistake is selecting only by capacitance and DC voltage. Resonant Capacitors are stressed by repetitive AC current and alternating voltage, so a nominal capacitance and voltage match does not prove that a component can handle the intended duty.

Another mistake is treating resonance as a fixed single-frequency event. Real converters operate across tolerance, load, temperature, and control variation. The capacitor should be evaluated at the frequencies and loads that the controller will actually command.

Designers can also underestimate parasitic inductance. Long leads and poorly arranged current paths can shift the intended response, create ringing, and increase semiconductor stress. Low ESL is valuable, but the surrounding layout must preserve that advantage.

Finally, a low case-temperature measurement does not always demonstrate low internal stress. Airflow, mounting surfaces, thermal gradients, and measurement location can hide a hotspot. The test method should be chosen to provide a realistic view of operating temperature.

Conclusion

Resonant Capacitors do much more than store charge. In resonant power electronics, they set the operating point, carry circulating current, shape switching conditions, and influence efficiency, reliability, and EMI performance. Their selection requires a connected review of capacitance, tolerance, voltage, current, ESR, ESL, temperature, and physical layout.

CRE provides PP-film resonant-capacitor options for high-frequency power applications, including products intended for high-voltage, high-current, and pulse-demanding resonant circuits. The best design outcome comes from matching a verified capacitor specification to simulated and measured circuit stress, then confirming its performance in the completed equipment.

FAQ

What is the difference between a resonant capacitor and a DC-Link capacitor?

A resonant capacitor primarily participates in high-frequency energy exchange within a resonant tank, while a DC-Link capacitor primarily stabilizes and stores energy on the DC bus.

Why are polypropylene film capacitors used for resonant applications?

Polypropylene film capacitors offer low dielectric loss, stable electrical characteristics, and good performance under high-frequency AC and repetitive pulse conditions.

Can resonant capacitors be used in LLC converters?

Yes. Resonant capacitors are key components in LLC resonant tanks and directly influence resonant frequency, gain characteristics, circulating current, and switching conditions.
