Can You Use Ceramic Capacitors in Relay Snubber Circuits​?

In the realm of electronic circuitry, the protection of components from voltage transients is paramount. Snubber circuits play a critical role in mitigating voltage spikes caused by rapid changes in current, particularly in inductive loads like relays. A common question among engineers and technicians is whether ceramic capacitors can be effectively used in relay snubber circuits. This article delves into the intricacies of snubber circuit design, evaluates the suitability of ceramic capacitors in this application, and explores the factors influencing component selection.

Understanding Snubber Circuits

Snubber circuits are protective networks used to suppress voltage transients in power electronics. They are essential in prolonging the lifespan of switching devices by limiting voltage overshoots and reducing electromagnetic interference. Typically, a snubber circuit consists of a resistor-capacitor (RC) network connected across the switch or load.

Role of Snubber Capacitors

The Snubber capacitors in the circuit absorb and temporarily store the energy from voltage spikes, releasing it slowly back into the circuit. This action prevents abrupt voltage changes that can damage components or cause malfunction. Selecting the appropriate capacitor type is crucial for the effectiveness of the snubber circuit.

Ceramic Capacitors in Snubber Circuits

Ceramic capacitors are widely used in electronic circuits due to their small size, low cost, and excellent high-frequency performance. However, their suitability in snubber circuits for relays is not straightforward and depends on several factors.

Advantages of Ceramic Capacitors

Ceramic capacitors offer low equivalent series resistance (ESR) and inductance (ESL), making them effective at high frequencies. They can handle rapid voltage changes, which is beneficial in suppressing high-frequency noise. Additionally, they are non-polarized and can be connected in any orientation, adding to their convenience in circuit design.

Limitations in Snubber Applications

Despite their advantages, ceramic capacitors have limitations when used in snubber circuits for relays. One significant issue is their voltage rating. Relays, especially those switching inductive loads, can generate high voltage spikes exceeding the capacitor's voltage tolerance. Moreover, ceramic capacitors exhibit voltage-dependent capacitance, known as the voltage coefficient, which can affect the performance of the snubber circuit.

Alternative: Film Capacitors

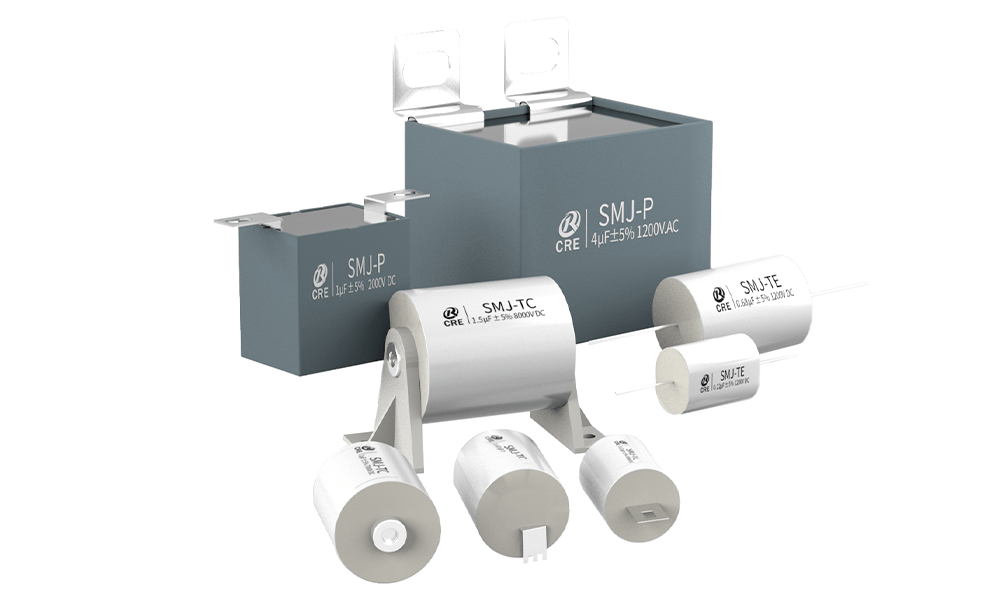

Film capacitors are often recommended for snubber circuits due to their superior voltage handling capabilities and stability. They possess a stable capacitance over a wide range of voltages and temperatures, making them reliable for suppressing transients.

Advantages of Film Capacitors as Snubber Capacitors

Film capacitors have low ESR and ESL, similar to ceramic types, but with better voltage and current handling. They are less susceptible to voltage coefficient effects, ensuring consistent performance. Their self-healing properties also enhance durability, a vital characteristic for Snubber capacitors in demanding applications.

Factors Influencing Capacitor Selection

Choosing the right capacitor for a snubber circuit involves considering the voltage rating, capacitance value, ESR, ESL, and the thermal characteristics. The capacitor must withstand the peak voltages and handle the dissipation power without degradation over time.

Voltage Rating and Capacitance

The voltage rating of the capacitor should exceed the maximum expected voltage spike to prevent breakdown. The capacitance value affects the rate at which the voltage rises across the switch; thus, it must be carefully calculated based on the circuit's parameters.

ESR and ESL Considerations

Low ESR minimizes the heating and power loss in the capacitor, while low ESL ensures effectiveness at high frequencies. Both parameters are crucial in high-performance snubber circuits.

Designing an Effective Snubber Circuit

An effective snubber circuit requires a balance between protection and performance. Overdesigning can lead to unnecessary costs and increased circuit complexity, while underdesigning may result in insufficient protection.

Calculating Snubber Components

Precise calculations are needed to determine the optimal values for the snubber components. This involves analyzing the relay's switching characteristics, the inductance in the circuit, and the nature of the load.

Simulation and Testing

Using simulation tools can aid in predicting the circuit's behavior. Prototyping and empirical testing are also essential to validate the design and make necessary adjustments.

Case Studies

Examining real-world applications provides insights into the practical aspects of snubber circuit design.

Industrial Relay Applications

In industrial settings, relays control large inductive loads. Here, film capacitors have been successfully used as Snubber capacitors due to their robustness and reliability under high stress conditions.

Automotive Electronics

Automotive relays often deal with fluctuating voltages and require components that can withstand harsh environments. Film capacitors again are preferred, but advances in ceramic capacitor technology are making them a candidate for certain applications.

Advancements in Capacitor Technology

Recent developments have improved the performance of ceramic capacitors, potentially expanding their usability in snubber circuits.

High Voltage Ceramic Capacitors

Manufacturers have introduced high voltage ceramic capacitors with improved properties. These capacitors offer higher voltage ratings and reduced voltage coefficients, making them more suitable for snubber applications than before.

Stacked MLCCs

Stacked multilayer ceramic capacitors (MLCCs) increase capacitance and voltage ratings by layering multiple capacitors. This technology enhances the feasibility of using ceramic capacitors in applications traditionally reserved for film capacitors.

Economic Considerations

Cost is always a factor in component selection. Ceramic capacitors are generally less expensive than film capacitors, which can make them attractive for low-cost applications.

Balancing Cost and Performance

While the initial cost savings are appealing, it's important to consider the total cost of ownership. A capacitor failure can lead to system downtime and additional maintenance costs, outweighing the upfront savings.

Environmental and Reliability Factors

The operational environment impacts capacitor performance. Factors such as temperature, humidity, and mechanical stress can influence the longevity and reliability of the capacitor.

Temperature Stability

Film capacitors typically exhibit better temperature stability compared to ceramic capacitors. In environments with significant temperature variations, this can be a decisive factor.

Mechanical Stress Resistance

Ceramic capacitors are brittle and can crack under mechanical stress, such as vibrations or board flexing. This vulnerability can lead to failures in applications where mechanical robustness is required.

Industry Standards and Certifications

Compliance with industry standards ensures safety and reliability. Capacitors used in snubber circuits must meet specific certifications, which can influence the choice between ceramic and film types.

UL and IEC Standards

Standards such as UL810 and IEC61071 specify requirements for capacitors used in power electronics. Film capacitors often have certifications aligning with these standards, making them suitable for industrial applications.

Safety Regulations

Safety norms may dictate the use of specific capacitor types to prevent hazards like fires or electrical shocks. Ensuring that the selected Snubber capacitors comply with these regulations is essential.

Expert Opinions

Industry experts often recommend film capacitors for snubber circuits in relays due to their proven reliability. However, they acknowledge the potential of ceramic capacitors in specific scenarios.

Situational Use of Ceramic Capacitors

Experts suggest that in low-power applications with limited voltage spikes, ceramic capacitors can be adequate. The key is thorough testing to ensure they meet the application's demands.

Future Trends

Advancements in materials science may further enhance the performance of ceramic capacitors. Ongoing research aims to improve their voltage handling and reduce susceptibility to environmental factors.

Practical Recommendations

For engineers considering ceramic capacitors in snubber circuits, it's important to weigh the pros and cons carefully.

Assessment and Testing

Conduct a thorough assessment of the circuit conditions, and perform rigorous testing under worst-case scenarios to validate the capacitor's performance.

Consulting Manufacturers

Engage with capacitor manufacturers to understand the capabilities and limitations of their products. They may offer specialized Snubber capacitors tailored for specific applications.

Conclusion

While ceramic capacitors have certain advantages, their use in relay snubber circuits is limited by factors such as voltage rating and reliability under stress. Film capacitors remain the preferred choice for most snubber applications due to their superior performance and durability. However, with advancements in capacitor technology, ceramic capacitors may become more viable in the future. Engineers must carefully evaluate their application's requirements, considering all factors to select the most appropriate Snubber capacitors to ensure safety, reliability, and efficiency.
