Pulse capacitors play a critical role in various high-energy and high-voltage applications. They are specialized capacitors designed to deliver rapid and intense bursts of energy in a controlled manner. Understanding the fundamentals of pulse capacitors is essential for professionals working in power electronics, medical equipment, and industrial machinery. In this comprehensive guide, we will delve into the intricacies of pulse capacitors, exploring their design principles, applications, and key considerations for optimal performance.
For a deeper understanding of the different types of pulse capacitors and their specific applications, explore our detailed resources on Pulse Capacitors.

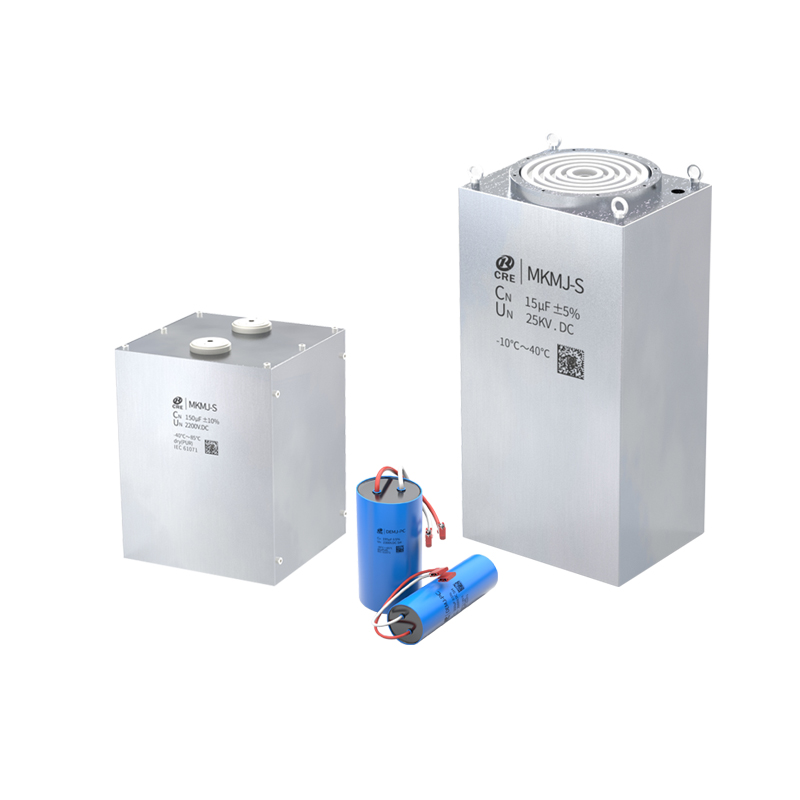

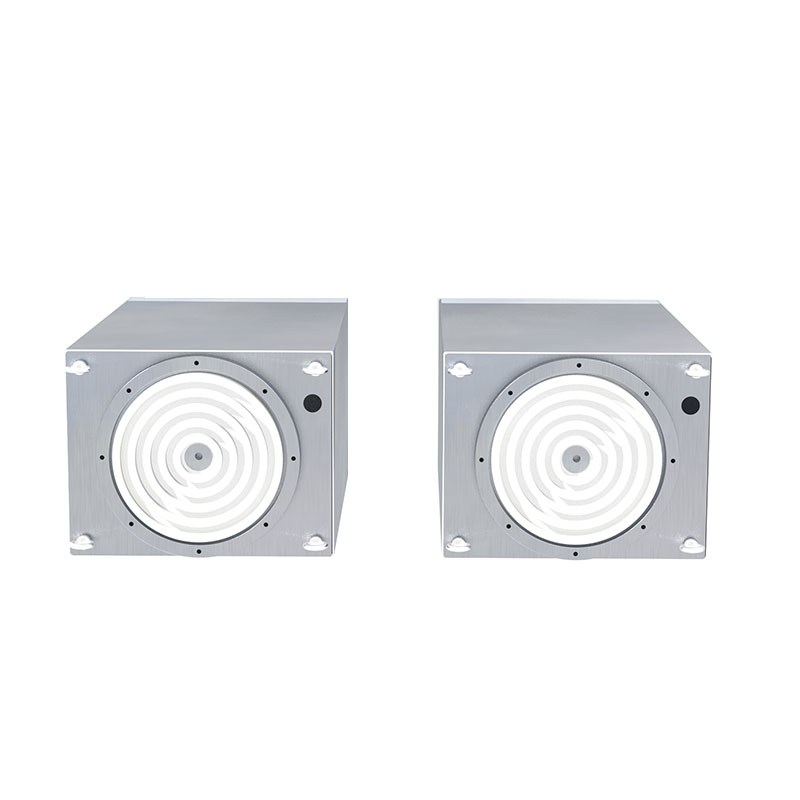

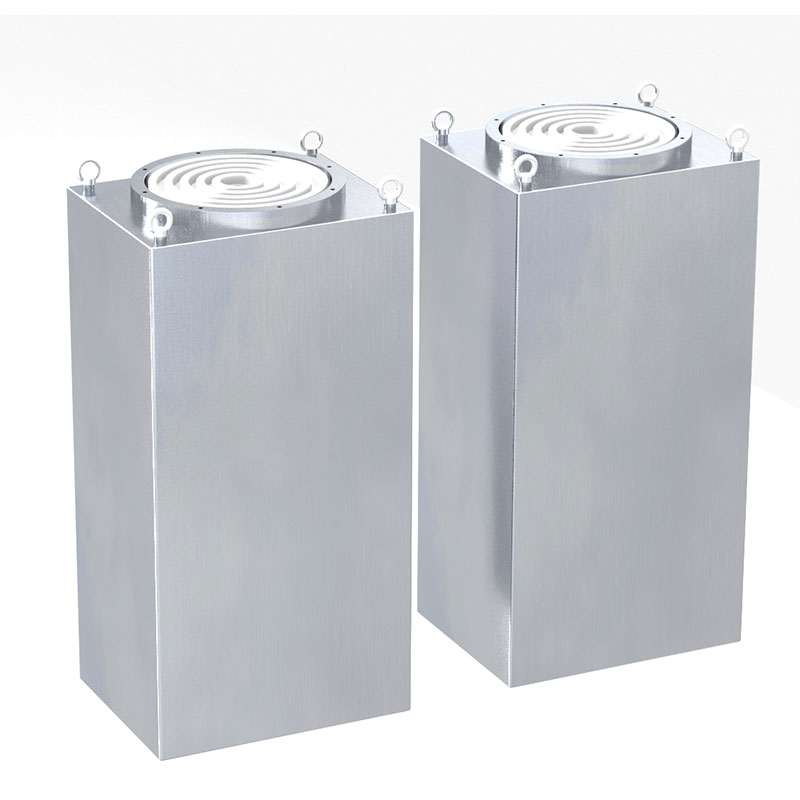

Pulse capacitors are specially designed to handle high peak currents and voltages over short durations. They are capable of discharging large amounts of energy rapidly, making them indispensable in applications that require quick energy bursts. The construction of pulse capacitors involves materials and designs that minimize losses and withstand electrical stresses.
At their core, pulse capacitors store electrical energy in an electric field created between two conductive plates separated by a dielectric material. The key difference between pulse capacitors and standard capacitors lies in their ability to handle higher stress levels without degradation. This is achieved through specialized dielectrics and electrode materials that offer superior durability and performance under rapid charging and discharging cycles.
The choice of dielectric material is crucial in pulse capacitor design. Common dielectrics include polypropylene, polyester, and ceramic materials, each offering unique properties:
Polypropylene Film: Known for low dielectric losses and high dielectric strength, making it ideal for high-frequency applications.
Polyester Film: Offers a higher dielectric constant but with increased losses, suitable for general-purpose applications.
Ceramic Materials: Provide high dielectric constants and are used when size reduction is critical.
Design ConsiderationsDesigning a pulse capacitor involves several critical factors to ensure reliability and performance. Engineers must consider voltage ratings, capacitance values, equivalent series resistance (ESR), and thermal management.
Selecting the appropriate voltage rating is essential to prevent dielectric breakdown. The capacitance value determines the amount of energy stored, calculated using the formula E = 0.5 × C × V², where E is energy, C is capacitance, and V is voltage.
A low ESR is desirable as it reduces energy losses and heat generation during rapid discharge cycles. Materials and construction techniques aim to minimize ESR, enhancing the efficiency of the capacitor.
Pulse capacitors can generate significant heat due to high currents. Effective thermal management, including the use of heat sinks and cooling systems, is vital to maintain performance and extend the capacitor's lifespan.
Pulse capacitors are utilized in a variety of applications that require rapid energy discharge:
In medical defibrillators, pulse capacitors deliver controlled electrical shocks crucial for restoring normal heart rhythms. The reliability and precision of pulse capacitors are paramount in life-saving equipment.
For more information on capacitors used in medical devices, visit our section on Pulse Capacitors.
Pulse capacitors provide the quick bursts of energy required to excite laser media in industrial laser systems. Their ability to handle high voltages and currents makes them ideal for such applications.
In applications like pulsed power supplies and electromagnetic forming, pulse capacitors store energy that is rapidly released to generate high-power pulses necessary for operation.
The manufacturing of pulse capacitors involves precision and adherence to strict quality standards. Key considerations include material selection, winding techniques, impregnation processes, and testing protocols.
High-quality dielectric films and electrode foils are selected based on their electrical properties and ability to withstand mechanical and thermal stresses. Purity and consistency of materials are critical for performance and reliability.
The electrodes and dielectric layers are wound using precise machinery to ensure uniformity and minimize defects. Techniques such as tight winding and controlled tension help in achieving optimal electrical characteristics.
Impregnating the capacitor windings with resin or oil eliminates air gaps, reducing the risk of partial discharges. Encapsulation protects the capacitor from environmental factors, enhancing durability.
Comprehensive testing is conducted to verify electrical parameters, mechanical integrity, and thermal performance. Tests include voltage withstand, insulation resistance, and partial discharge measurements.
Choosing the appropriate pulse capacitor involves evaluating application requirements and matching them with capacitor specifications. Factors to consider include:
Voltage and Current Ratings: Ensure the capacitor can handle the maximum expected voltages and peak currents.
Capacitance Value: Determine the required energy storage based on the application's energy needs.
Physical Size and Form Factor: Consider space constraints within the equipment.
Environmental Conditions: Assess operating temperatures, humidity levels, and exposure to contaminants.

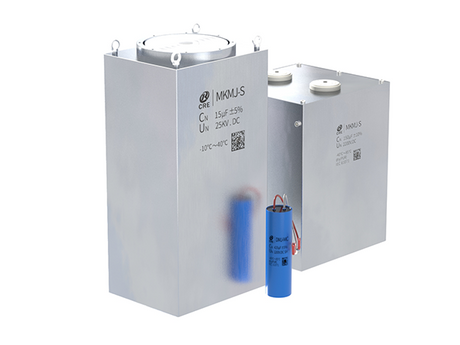

Our extensive range of Pulse Capacitors can meet diverse application needs, offering reliability and performance.
Continuous research and development have led to significant advancements in pulse capacitor technology. Innovations focus on enhancing energy density, reducing losses, and improving thermal management.
Incorporating nanoparticles into dielectric materials has resulted in improved dielectric constants and breakdown strengths. This advancement allows for smaller capacitors with higher performance.
Developments in electrode materials, such as graphene and advanced metal alloys, contribute to lower ESR and higher conductivity. These materials enable capacitors to handle greater stress with reduced losses.
Advanced manufacturing processes, including precision layering and automated quality control, enhance the consistency and reliability of pulse capacitors. Innovations in production contribute to longer lifespans and better performance.
Pulse capacitors store significant amounts of energy and require careful handling to ensure safety. Key safety considerations include:
Proper Discharging: Always discharge capacitors fully before handling to prevent electric shocks.
Voltage Rating Adherence: Do not exceed the specified voltage ratings to avoid dielectric breakdown.
Temperature Monitoring: Ensure operating temperatures remain within specified limits to prevent overheating.
Physical Protection: Protect capacitors from mechanical stresses and environmental damage.
Adhering to safety guidelines ensures the reliable operation of pulse capacitors and the safety of personnel.
Environmental Impact and SustainabilityEnvironmental considerations are increasingly important in capacitor manufacturing. Efforts focus on using eco-friendly materials, reducing hazardous substances, and implementing recycling programs.
Restricting hazardous substances such as lead and mercury in capacitor components minimizes environmental impact and complies with international regulations.
Using recyclable materials in capacitor construction facilitates end-of-life recycling, reducing waste and conserving resources.
Pulse capacitors are vital components in modern electronic systems requiring rapid and reliable energy discharge. A thorough understanding of their design, application, and manufacturing processes is essential for engineers and professionals in the field. By selecting the appropriate pulse capacitors and adhering to best practices in their use and handling, optimal performance and longevity can be achieved.
