Choosing The Right Capacitors for High-Power Resonant Circuits

Resonant capacitors are central to the performance of high-power LC networks. In an induction heater, resonant converter, inverter, or switching power stage, they repeatedly exchange energy with an inductor rather than simply smoothing a DC rail. That makes capacitance only one part of the decision. The capacitor must also withstand circulating current, AC voltage, switching frequency, heat, mechanical constraints, and the duty cycle the equipment will actually see. This guide explains how to select a component or capacitor bank that supports efficient, stable operation in demanding resonant circuits.

Key Takeaways

• Select capacitance from the required resonant frequency and the actual inductance of the power loop—not from a nominal value alone.

• Check continuous and peak AC voltage, capacitor RMS current, frequency, and duty cycle together.

• Low ESR film capacitors help reduce internal dissipation, but thermal performance still depends on package design, connections, cooling, and enclosure conditions.

• Evaluate the complete installed assembly, including busbars, terminal torque, spacing, airflow, and coolant flow where applicable.

• For non-standard electrical or thermal conditions, a custom configuration can be more reliable than adapting a standard part beyond its intended operating range.

Start with the Resonant Circuit, Not the Catalog

Before comparing resonant capacitors, define the operating envelope of the circuit. The design inputs should come from measurement, simulation, validated converter calculations, or a combination of all three.

For a resonant converter capacitor, assess the full frequency range rather than only the nominal switching point. LLC and other resonant converters may deliberately vary frequency to regulate output. Induction heating systems may experience load changes as the workpiece heats, moves, or changes shape. A design that is comfortable at one operating point can become stressed near the edge of its control range.

A useful application specification should include both normal operating values and credible worst-case conditions. This gives the capacitor supplier and design team a meaningful basis for selection.

Calculate Capacitance, Then Check Tolerance and Drift

Capacitance determines where the LC network resonates, but the value must be considered with the tolerance of both the capacitor and inductor. A nominal calculation may be accurate on paper while the installed system operates off target because the actual values differ from their nominal values.

When evaluating capacitance, consider the target resonant frequency, inductance measured at relevant current and temperature, capacitor tolerance, temperature-related capacitance change, and the effect of parallel or series connections in the completed capacitor bank.

Parallel connection increases capacitance and can increase current-handling capability, but it requires a balanced layout. Unequal conductor lengths, temperature differences, or asymmetrical busbars can produce uneven current distribution. Series connection can raise voltage capability, but it makes voltage sharing and tolerance matching more important.

For many industrial designs, the aim is not to hit one exact frequency. It is to maintain stable and repeatable behavior across the expected load, temperature, and operating window. That distinction is particularly important where output quality or process consistency depends on the resonant condition.

Evaluate Voltage Stress in the Actual Tank Loop

A frequent selection error is comparing the capacitor voltage rating only with the DC input or mains-derived bus voltage. Voltage across the capacitor in a resonant loop can be materially different from the source voltage because the tank stores and transfers energy internally.

Review continuous operating voltage, peak repetitive AC voltage, switching overshoot, load-transient voltage, start-up and shut-down conditions, no-load behavior, and voltage imbalance across any series-connected capacitor sections.

The appropriate design margin depends on topology, waveform, protection strategy, capacitor construction, temperature, and expected service conditions. A general rule of thumb is not a substitute for a circuit-specific stress analysis. The selected component should support credible working conditions, including repeated events that may not cause immediate failure but can accelerate ageing.

For high power resonant capacitors, voltage selection must be coordinated with current and frequency. A part may have adequate voltage endurance yet generate unacceptable heat when exposed to high-frequency circulating current. Conversely, a current-capable design may not suit a higher-voltage topology without a suitable insulation and connection arrangement.

Match Current Capability to Waveform and Duty Cycle

RMS current is one of the most important—and most misunderstood—parameters in a resonant circuit. The current circulating between the inductor and capacitor can exceed the current drawn from the source. A capacitor that appears adequately sized based on input current may therefore run hot in the tank loop.

Do not assume a sinusoidal waveform unless measurement or simulation confirms it. High-frequency switching creates harmonic content, and waveform shape may vary throughout the control range. Evaluate RMS current at nominal and maximum load, repetitive peak current, frequency range, continuous versus intermittent duty, current sharing among parallel capacitors, and current stress during tuning, start-up, and fault recovery.

In continuous-duty equipment, thermal stabilization is as important as a short functional test. The capacitor should be assessed after it reaches a representative steady-state temperature. Short trials can hide slow accumulation of internal and terminal heat.

Where a single device cannot reasonably carry the required current, a capacitor bank may be needed. In that case, electrical symmetry and equal cooling are design requirements rather than optional refinements.

Choose the Construction and Cooling Strategy

Capacitor construction affects loss management, electrical connections, mounting, and maintenance. The right choice depends on power level, frequency, available space, environment, and run time.

For lower-stress or intermittent operation, self-cooled construction may be suitable when cabinet airflow and ambient temperature remain controlled. Air-cooled arrangements can support moderate-power systems if the thermal path is adequate and ventilation is maintained. Continuous high-current equipment may require direct liquid cooling to maintain stable operating temperature.

This is particularly important for induction heating capacitors. In a heating system, workpiece loading, coil geometry, production rate, and surrounding temperature can all change stress in the tank. The capacitor bank must carry high circulating current while retaining stable electrical behavior over repeated production cycles.

For long-duty industrial systems, specify cooling medium, flow conditions, inlet temperature, connection method, and maintenance expectations as part of the application data—not as afterthoughts during installation.

CRE Product Advantages for High-Power Resonant Applications

CRE’s resonant capacitor range is designed around the requirements of high-frequency resonant circuits. Its polypropylene film dielectric construction supports low ESR and low-loss operation, which is relevant where circulating current and repetitive energy transfer can create significant thermal stress. The range is intended for high-voltage and high-current power-electronics applications, including inverters, motor drives, and other demanding resonant systems.

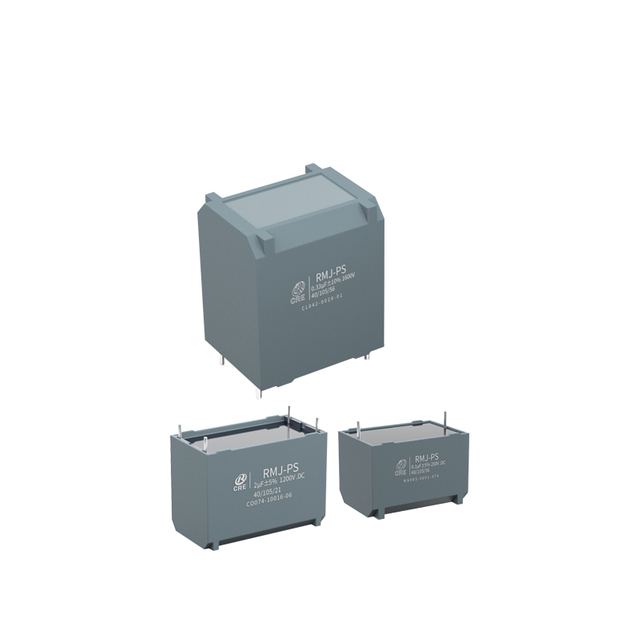

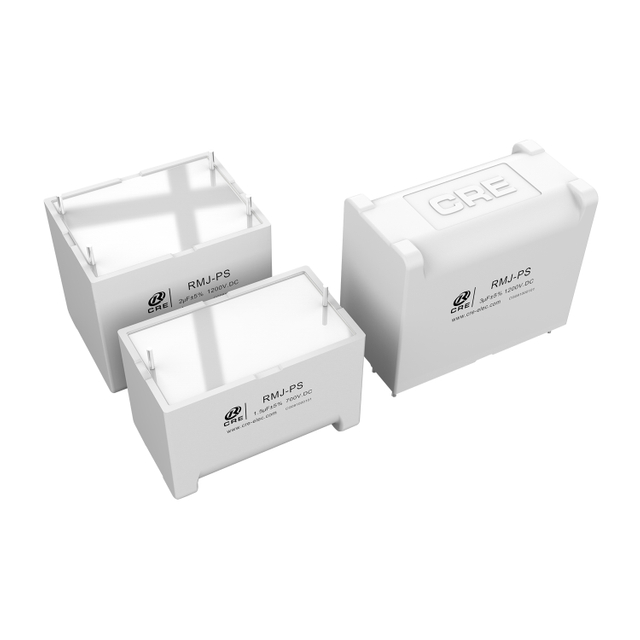

Product choice can also be aligned with electrical and packaging requirements. The available resonant-capacitor range includes plastic-box resonance/snubber designs, resonance/snubber capacitors, and high-voltage resonance capacitor options. This allows engineers to compare a suitable construction against the circuit’s required voltage, current, mounting space, and interconnection layout instead of treating all film capacitors as electrically interchangeable.

For induction heating applications, CRE provides induction heating capacitors using whole-film media in RFM and RAM types. These products are intended for demanding heating installations where power-factor performance, high-current operation, thermal stability, and dependable long-duty service all need to be addressed together. The portfolio includes options such as water-cooled and ultrasonic-induction-heating capacitor products, allowing the cooling and application condition to be considered early in the selection process.

The practical advantage is application fit. Rather than selecting by capacitance alone, equipment designers can match the capacitor’s electrical behavior, cooling approach, mechanical format, and intended application to the actual operating environment. For equipment with unusual voltage, frequency, current, cooling, or space constraints, CRE can assess a configuration that better fits the system than a nominally similar standard component.

Verify Temperature, Environment, and Installation

Capacitor temperature is not just an ambient-temperature question. It is the result of internal electrical loss plus the ability of the assembly to remove heat. A cabinet that appears adequately ventilated may still have stagnant air around the capacitor, a hot busbar connection, or an adjacent heat source that raises local temperature.

During design review and commissioning, measure ambient temperature near the capacitor, case temperature at its warmest point, and terminal and busbar temperature. Confirm the airflow path, fan condition, filter cleanliness, coolant flow, inlet and outlet temperature, and available clearance around terminals. Also account for humidity, dust, oil mist, vibration, and conductive contamination.

Installation quality can become a hidden source of failure. Loose terminals, uneven torque, oxidized contact surfaces, undersized busbars, or an asymmetrical bank layout can increase contact resistance. In a high-current resonant loop, relatively small resistive losses at the connection can create substantial local heating.

CRE’s induction heating capacitor failure guide also highlights the interaction of heat, current stress, cooling, voltage overload, and installation conditions. These should be defined as selection inputs before a capacitor is purchased.

Select by Application, Not by Component Category Alone

Different resonant applications create different priorities. A compact high-frequency converter may emphasize low ESL, frequency behavior, and close integration near switching devices. A large induction heating system may emphasize current capability, cooling, robust terminals, and continuous-duty thermal stability.

For LLC and related power-conversion topologies, define the operating frequency range, magnetizing and resonant inductances, input-voltage range, output loading, and transformer parasitics. Layout should be considered early because stray inductance and poor connections can change switching behavior and increase component stress.

For induction heating, consider coil geometry, workpiece material and position, production cycle, power setting, cooling strategy, and anticipated load variation. These systems often operate in more demanding thermal and environmental conditions than enclosed electronic converters. High current, elevated tank voltage, and long operation call for a thorough review of ESR, cooling, terminal design, and service access.

In inverters, motor drives, and renewable-energy equipment, resonant functions may appear alongside DC-link, snubber, filtering, or pulse-energy functions. Do not assume one capacitor category can perform every role in the power stage. Select each component according to the electrical function it must perform, then assess how those functions interact in the completed system.

A Practical Validation Plan Before Release

A robust resonant capacitor selection process ends with verification under representative conditions. Bench measurements should be supported by thermal tests and controlled worst-case operating trials where practical.

First, verify operating frequency and tank current across the expected load range. Next, record capacitor and terminal temperatures after thermal stabilization. Compare measured values with design assumptions, then inspect all interconnections for signs of heating or uneven current sharing.

Repeat the checks during realistic transients, including start-up, load changes, no-load operation, and protective shutdown. If the system includes liquid cooling, test representative coolant flow and inlet-temperature conditions within safe limits. These checks often reveal limitations that a nominal electrical calculation cannot show.

Document the validated conditions in the product specification: voltage waveform, RMS and peak current, frequency range, duty cycle, thermal limits, cooling method, mounting arrangement, and maintenance intervals. This makes future replacement, troubleshooting, and system scaling more reliable.

Conclusion

Choosing resonant capacitors for high-power circuits is an exercise in matching the complete operating environment—not simply selecting a capacitance value. Start with the LC tank circuit and its real frequency range, then evaluate voltage, RMS current, ESR, ESL, temperature, cooling, and installation as connected factors.

Low-loss construction and suitable thermal design can protect efficiency and reliability, but they must be supported by balanced current paths, sound terminals, and realistic testing. Whether the application is a resonant converter, induction heater, inverter, or specialized industrial power system, the strongest selection is the one verified against the real electrical and thermal stress it will experience.

FAQ

How do you prevent costly frequency detuning in high-power resonant applications?

Minor capacitance drift caused by high heat can easily throw resonant circuits out of tune, leading to sudden system failures. Sourcing components with advanced Class I dielectric stability ensures that capacitance values remain locked under heavy load, protecting your equipment from downtime and reducing long-term maintenance costs.

Why must procurement verify actual tank loop voltage instead of just checking the input bus rating?

Because of voltage magnification inside resonant circuits, the actual voltage stress on the capacitor can drastically exceed the nominal system voltage. Specifying the true dynamic loop voltage during the sourcing phase prevents dielectric breakdown and safeguards your high-power hardware against catastrophic failures.

How do low ESR designs and custom assemblies minimize thermal risks for high-current systems?

High ripple currents generate intense heat via Equivalent Series Resistance (ESR), threatening system reliability. Opting for components with low ESR, optimized thermal dissipation, and flexible custom assembly options helps buyers mitigate thermal overload, extend component lifespan, and secure reliable supply chain performance.
