A snubber capacitor can meet every electrical rating and still leave an IGBT exposed to excessive overshoot, ringing, or EMI. The usual cause is not the component itself, but the inductance added by long leads, wide current loops, remote bus connections, or poorly chosen return paths. During turn-off, that stray inductance converts rapid current change into a voltage spike, so placement must follow the real commutation loop rather than the nearest open space. A placement-first approach helps engineers identify the critical loop, protect sensing accuracy, and verify the final layout under realistic operating conditions.
Placement should begin with the current path at the instant the IGBT turns off. Current in stray inductance cannot stop immediately, so it drives the switching-node voltage upward until another path accepts the stored energy. The IGBT Snubber Capacitor must bridge the conductor section responsible for that overshoot; otherwise, the critical inductance remains between the capacitor and the semiconductor. A convenient pair of DC-bus pads may share the same schematic net as the module terminals yet behave differently during a fast transient.
Mark the transient path on the schematic, then overlay it on the PCB or busbar drawing. Follow the loop through the module and back to the local bus return, noting every joint, connector, shunt, narrow copper section, or fuse link. The IGBT Snubber Capacitor should bypass as much of this inductive path as the topology permits rather than occupying the nearest unused area.
A capacitor positioned only a few millimeters from the module may still connect through several vias, a necked-down trace, and a remote return. Another IGBT Snubber Capacitor can perform better when its terminals connect directly across the module bus posts with wide, closely coupled conductors. Reducing the DC loop and matching the capacitor terminals to the IGBT terminal spacing can substantially lower installation inductance compared with conventional leaded connections.
Long exposed leads, extension straps, stacked hardware, and sharply bent terminals also increase electrical distance. Review the complete outgoing-and-returning path instead of measuring the gap between package outlines. An IGBT Snubber Capacitor is truly close only when transient current can enter and leave it through a compact connection.
The snubber loop includes the switching device, capacitor, and both connecting conductors. Shortening the positive connection while routing the return around a large ground or negative-bus region leaves substantial loop area and parasitic inductance. Short, wide, adjacent conductors are preferable because they keep the magnetic fields closely coupled and reduce the enclosed area. Power and signal loops should remain as short and compact as the assembly permits.
Unnecessary vias, connector transitions, long through-hole leads, and narrow copper bottlenecks can undermine an otherwise suitable IGBT Snubber Capacitor. A wide plane offers limited benefit if the pulse current must enter through a narrow pad or distant junction. Laminated bus plates or overlapping conductors are often more effective than simply adding copper thickness because they reduce separation between forward and return paths.
Visual symmetry does not guarantee equal inductance. A centrally mounted shared IGBT Snubber Capacitor may reach one module through an extra joint or longer busbar branch, producing different overshoot or ringing across parallel devices. Compare each path by conductor length, loop area, joint count, and return geometry rather than by package spacing.
Some assemblies are best served by one capacitor mounted directly across module bus terminals; others need local capacitors or a carefully symmetrical busbar. The topology and actual commutation paths should determine whether a shared IGBT Snubber Capacitor can protect every switching position equally. Terminal-level waveform measurements should confirm the choice. For parallel assemblies, compare the same switching event at each module instead of assuming that one centrally measured waveform represents the entire bridge.
Two points labeled “DC+” are equivalent at low frequency but may be separated by meaningful impedance during a fast edge. Busbar branches, PCB planes, cable lugs, fuses, and connectors between them contribute parasitic inductance. If both terminals of the IGBT Snubber Capacitor sit outside the section producing the spike, the part supports the remote bus rather than limiting voltage at the switch. The correct connection encloses the smallest practical portion of the commutation loop.
Package architecture changes the available nodes. Discrete half-bridges, intelligent power modules, laminated busbars, and multi-module inverters expose different internal and external paths. Review the module terminal diagram and application requirements instead of copying a layout from another topology. Internal bond wires and common terminals can make an apparently logical external connection ineffective.
Strong surge suppression can create a measurement problem when capacitor charging and discharging current crosses a shunt resistor. The resulting pulses may distort current feedback, shift the apparent overcurrent level, or affect short-circuit protection. The position with the strongest suppression can sometimes route snubber current through the shunt, while an alternative connection may preserve sensing accuracy with a modest compromise in surge control. The exact nodes depend on the module architecture, but the interaction between the two current paths must always be reviewed.
Overlay the power return, shunt path, Kelvin sensing traces, and IGBT Snubber Capacitor loop before releasing the PCB. Filtering may hide spikes at the amplifier input, but it does not remove the pulse current or restore a shifted protection threshold. Relocating the IGBT Snubber Capacitor return is generally more robust than filtering a placement mistake.
The main DC-link bank supplies energy, carries ripple current, and stabilizes the bus. A local IGBT Snubber Capacitor addresses fast device-level transients created by the inductance between that bank and the module. Even a large low-ESR bank can offer weak high-frequency protection when a long busbar or cable lies in between.
In the equivalent circuit, the bulk capacitor sits behind the distribution-path inductance, allowing the IGBT voltage to overshoot before the remote bank responds. Local high-frequency capacitance reduces this loop but does not replace bulk energy storage. Both components are often necessary, yet their functions and placement are not interchangeable.
Capacitor specifications must be evaluated together with terminal geometry. Spacing, insert orientation, mounting height, lead width, and compatibility with the IGBT posts determine whether the installed component preserves its low ESL. A package requiring extension wires, twisted straps, or long bent leads may perform worse than a larger part designed for direct connection. The right IGBT Snubber Capacitor must fit the intended current path as well as meet its electrical ratings.

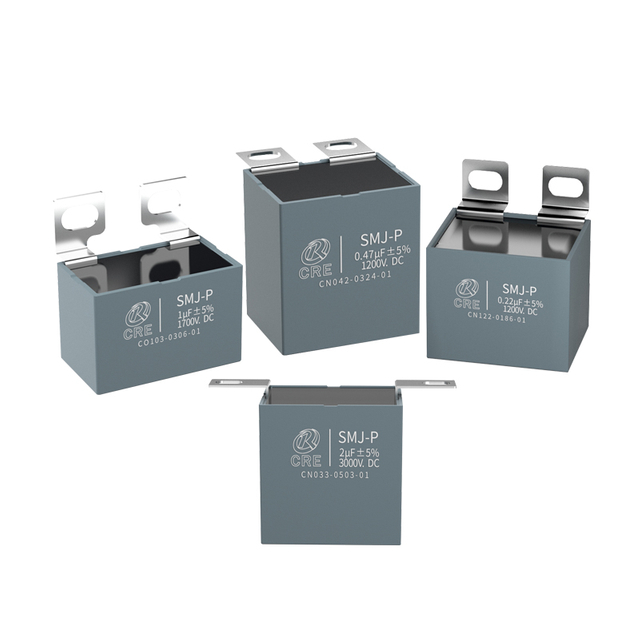

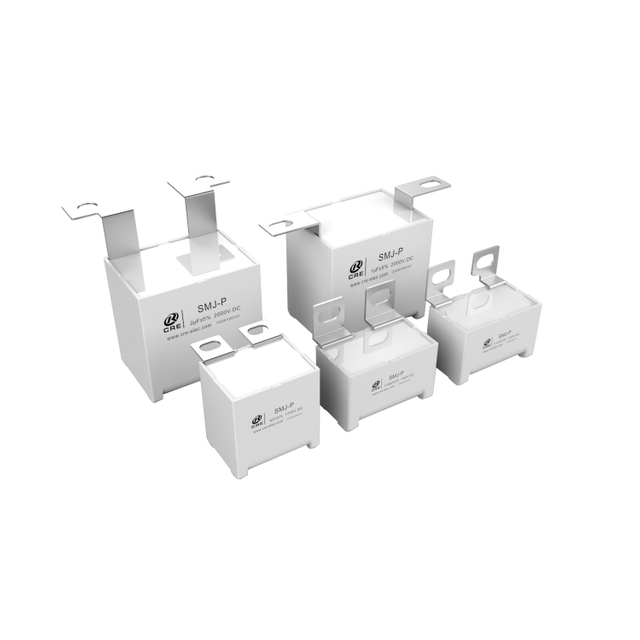

CRE polypropylene IGBT/GTO snubber capacitors are available with low-ESR and low-ESL construction for power switching applications. The MKP inverter model uses tin-plated copper inserts intended to support direct IGBT installation while handling high pulse current and dV/dt. These characteristics can support a compact connection, although the final installation inductance still depends on the surrounding conductors.
The shortest location is not automatically the safest. Contact with a hot baseplate, damping resistor, or heatsink exhaust can reduce thermal margin, while nearby busbars and fasteners may compromise clearance. Low temperature rise in the capacitor does not eliminate the need for suitable cooling, creepage, clearance, and insulation distances. The surrounding air temperature and heat conducted through copper terminals also matter.
A heavy component should not be supported only by its electrical inserts where vibration or servicing could stress the terminals. Assembly tolerances must allow seating without forced alignment, and maintenance should not require repeated bending of copper straps. Compact IGBT Snubber Capacitor placement must remain low inductance, thermally acceptable, insulated, and mechanically secure.
Troubleshooting starts with a trustworthy waveform. Measure collector-emitter overshoot close to the protected terminals because a probe at the remote DC-link bank may show a cleaner voltage than the IGBT experiences. Use a suitably rated differential probe with adequate bandwidth and a minimal measurement loop so the setup does not create or exaggerate ringing. Snubber behavior must be verified on hardware rather than assumed from calculations alone.
Repeat measurements at the highest relevant bus voltage, turn-off current, switching speed, and operating temperature. Record peak voltage, ringing frequency and decay, sensing noise, and the temperature rise of the IGBT Snubber Capacitor and damping resistor. A production-ready layout needs margin across realistic variation, not only at one light-load bench condition.
Increasing capacitance may reduce visible overshoot while raising charge-discharge current, resistor loss, turn-on stress, or capacitor heating. Before resizing the IGBT Snubber Capacitor, inspect the connection nodes, complete loop area, return geometry, busbar joints, vias, lead length, and probe location. Correcting these features can improve suppression without adding component stress.
Retune capacitance and resistance only after the physical path is sound. The finished assembly determines effective parasitic inductance, so calculations based on an ideal schematic require terminal-level confirmation. Short traces, minimum loop area, separation from high-di/dt lines, and avoidance of ground loops remain central checks.
Observed Result | Likely Placement Mistake | First Check | Corrective Direction |
Overshoot remains high | Capacitor is outside the critical loop | Trace turn-off current | Move inside the inductive bus section |
Ringing remains | Excess loop inductance | Inspect leads, vias, and return | Shorten and couple both paths |
Sensing becomes noisy | Snubber current crosses the shunt | Overlay power and sensing loops | Relocate the return |
Modules behave differently | Shared path is unequal | Compare loop geometry | Improve symmetry or add local suppression |
EMI increases | Loop is large or near control traces | Inspect adjacent routing | Reduce area and separate circuits |
Capacitor runs hot | Poor placement or excessive value | Measure pulse current and temperature | Correct layout before resizing |
Effective snubber placement depends on the complete transient-current loop, not simply the physical distance between the capacitor and the IGBT. Correct node selection, short forward and return paths, clean sensing routes, and terminal-level testing should come before any change in capacitance. CRE New Energy PTE. LTD. offers polypropylene IGBT Snubber Capacitor options with low ESR and ESL, high pulse-current capability, and mounting formats suited to inverter applications. When matched to the module geometry and installed correctly, these capacitors can help reduce overshoot, switching stress, and avoidable layout-related losses.
A: It absorbs transient energy during switching, limiting collector-emitter voltage overshoot, damping ringing, reducing EMI, and helping keep the IGBT within its voltage rating.
A: Place it directly across the relevant IGBT or module DC-link terminals, using the shortest practical forward and return paths to minimize parasitic inductance.
A: Physical proximity is insufficient when long leads, vias, busbar sections, or indirect return paths create a large high-frequency current loop and added inductance.
A: Usually not. The main DC-link capacitor manages bus energy and ripple, while a local snubber controls fast transients occurring at the IGBT terminals.
A: Check placement, connection nodes, loop area, lead length, and measurement technique first. Increasing capacitance may add pulse current, switching losses, and thermal stress.
A: Measure collector-emitter overshoot and ringing near the IGBT terminals under maximum relevant voltage, current, switching speed, and temperature conditions before finalizing the layout.
