A Snubber capacitor is a specialized capacitor used in power electronic circuits to absorb switching energy, suppress voltage transients, and protect devices such as IGBTs, GTOs, MOSFETs, diodes, and transformer windings from overshoot and ringing. In practical designs, a Snubber capacitor is often part of a snubber resistor capacitor network or diode-assisted structure, where the capacitor absorbs transient energy and the resistor provides discharge and damping, making both circuit design and capacitor characteristics important in industrial power conversion, resonant circuits, and high-voltage switching systems.
● A Snubber capacitor suppresses voltage spikes, limits ringing, and reduces switching stress in power electronic circuits.
● Common Snubber capacitor circuit types include RC snubbers, RC-diode snubbers, and RCD snubbers.
● Polypropylene film technology is widely used for Snubber capacitor designs because of low ESR, low ESL, high dv/dt capability, and strong pulse current performance.
● Snubber capacitor selection depends on voltage rating, capacitance value, current stress, frequency, thermal conditions, and package style.
● A snubber resistor capacitor network is often used in IGBT, GTO, switching power supply, inverter, and resonant circuit applications.
A Snubber capacitor is a capacitor designed to absorb unwanted electrical energy generated during switching events. When a semiconductor turns on or off rapidly, parasitic inductance in the circuit can create voltage spikes and oscillation. The Snubber capacitor works by storing part of this transient energy and reducing the peak voltage seen by the switching device.
In many industrial circuits, a Snubber capacitor is not used alone but as part of a network. A typical snubber resistor capacitor combination can limit oscillation more effectively than a capacitor by itself. The capacitor addresses transient energy, while the resistor dissipates stored energy and damps the resonant behavior created by stray inductance.
The design objective is not only suppression of spikes but also preservation of switching reliability over long service life. A properly specified Snubber capacitor reduces stress on semiconductors and contributes to more stable electrical performance under repetitive operation.
During turn-off, current flowing through stray inductance tends to continue, which creates a sudden voltage rise across the switching device. A Snubber capacitor provides an alternative path for this current, slowing the voltage rise and lowering peak overshoot. This is one reason why a Snubber capacitor is closely associated with high dv/dt environments.
During turn-on, ringing may occur because circuit inductance and capacitance form an oscillating loop. A Snubber capacitor can reduce the amplitude of this oscillation when combined with suitable damping resistance. In a snubber resistor capacitor circuit, the resistor defines how quickly the energy is dissipated and how aggressively oscillation is controlled.
The effectiveness of a Snubber capacitor depends strongly on ESR, ESL, and physical layout. Even a high-quality capacitor can underperform if long leads or poor placement increase loop inductance and weaken suppression.
A general-purpose capacitor may meet nominal capacitance and voltage values, but a Snubber capacitor must survive repeated high-current pulses and fast transient stress. For this reason, low ESR and low ESL are central properties in Snubber capacitor design. These characteristics improve current handling and reduce internal heat generation under switching conditions.
Polypropylene film is commonly chosen for Snubber capacitor construction because it combines low loss with strong dielectric performance. In many industrial designs, metallized polypropylene film capacitors are preferred for long operating life, self-healing behavior, and consistent performance across temperature variations. A Snubber capacitor intended for IGBT or GTO applications also requires strong dv/dt capability and controlled internal temperature rise.
Package form is another difference. A dedicated Snubber capacitor may use plastic box packaging, axial leads, radial structures, or lug terminals to minimize installation inductance and fit dense power electronic assemblies.
A Snubber capacitor is widely used in IGBT protection circuits to absorb turn-off spikes and limit voltage overshoot. These applications require high pulse current capability and strong dv/dt endurance because the capacitor must react quickly and repeatedly. Plastic box and axial lead Snubber capacitor designs are often used for their compact size and low inductance.

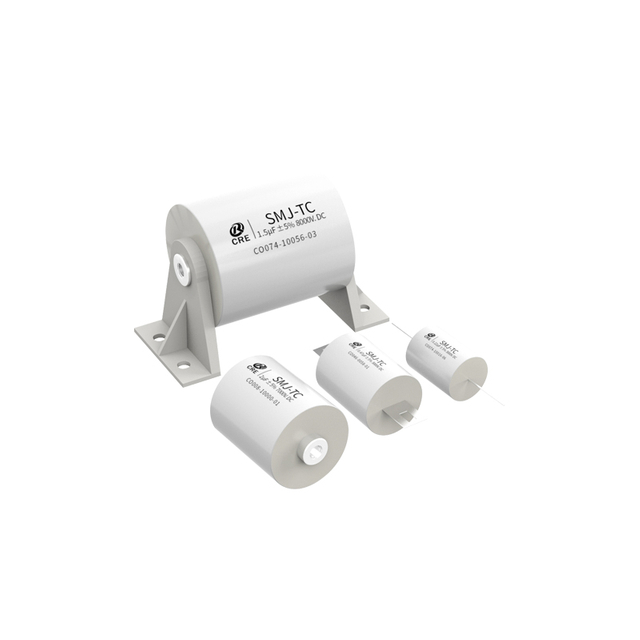

In GTO circuits, stress is often higher, especially in high-voltage systems. A Snubber capacitor used with GTO devices must handle high DC voltage, high-frequency current, and stable pulse performance. A snubber resistor capacitor arrangement is often used when controlled damping is needed.
Selection in these circuits is highly application-specific. Voltage margin, mounting method, and thermal conditions all affect the final Snubber capacitor choice.
A Snubber capacitor is common in switched-mode power supplies, where fast transitions create voltage spikes across transformers, rectifiers, and switching devices. The capacitor reduces transients and suppresses resonance caused by leakage inductance. In compact high-frequency designs, placement of the Snubber capacitor is especially important.
Inverters and motor drives also use a Snubber capacitor to improve switching behavior. As bus voltage rises and switching edges become steeper, transient suppression becomes harder without dedicated components. A snubber resistor capacitor network can reduce ringing across IGBTs or diodes and stabilize the waveform.
These applications often require low ESR, low ESL, and strong repetitive-stress endurance. A Snubber capacitor designed for power electronics is usually more suitable than a general film capacitor with similar ratings.
A Snubber capacitor is also used in LLC resonant circuits, parallel resonant stages, induction heating, robotics, and aerospace electronics. In these environments, capacitors face high-frequency current and sometimes severe thermal or humidity stress. Polypropylene film is widely used because a Snubber capacitor here must provide both stability and low loss.
In resonant topologies, the capacitor may serve both resonant and protective functions depending on the circuit. Designers often assess whether a dedicated Snubber capacitor or a combined resonant/snubber solution is more suitable. The choice depends on waveform, current stress, and damping needs.
High-frequency systems are sensitive to parasitic inductance, so package style is critical. A low-inductance Snubber capacitor with short current paths usually performs better than larger or more distant components.
Application | Main Stress | Typical Snubber Function | Key Capacitor Priorities |
IGBT switching stage | High dv/dt and pulse current | Limit overshoot and ringing | Low ESR, low ESL, high dv/dt |
GTO protection circuit | Very high voltage and pulse stress | Absorb transient energy | High voltage rating, strong pulse handling |
Switching power supply | Leakage inductance spikes | Clamp turn-off transients | Fast response, compact mounting |
Inverter and motor drive | Repetitive switching stress | Reduce waveform oscillation | Thermal stability, long life |
LLC/resonant circuit | High-frequency current | Control resonance-related stress | Low loss, stable frequency behavior |
An RC snubber is one of the most common Snubber capacitor circuit forms. It uses a resistor and capacitor connected in series, usually across a switch or inductive element, to absorb transient energy and damp oscillation. The snubber resistor capacitor structure is simple, widely understood, and effective in many moderate-power applications.
The resistor in an RC snubber determines damping behavior and discharge speed, while the Snubber capacitor captures the transient energy. If the capacitor value is too small, voltage suppression may be insufficient; if too large, switching loss may increase. This tradeoff requires calculation and waveform verification.
RC snubbers are common in power supplies, relays, and some inverter stages. They are often selected when simplicity, predictable damping, and compact implementation are required.
An RC-diode snubber adds a diode to guide current flow differently during charge and discharge. This changes the energy path and can improve efficiency in some switching conditions. The Snubber capacitor in this structure still absorbs transient energy, but the diode introduces directional control.
This type is useful when designers want asymmetric behavior between turn-on and turn-off events. In some topologies, the snubber resistor capacitor function is maintained during one interval, while the diode bypasses or redirects energy during another. That flexibility makes RC-diode snubbers suitable in specific transistor and rectifier circuits.
The exact design depends on switching waveform, current polarity, and transient source. As a result, the Snubber capacitor cannot be chosen independently from the resistor and diode parameters.
RCD snubbers are also common in power electronics, especially in flyback and transformer-based circuits. This topology combines a resistor, capacitor, and diode to clamp voltage and dissipate stored leakage energy in a controlled way. The Snubber capacitor stores the spike energy temporarily, while the resistor releases it as heat over time.
Compared with a basic RC snubber, an RCD design often provides more controlled clamping in circuits with pronounced leakage inductance behavior. The Snubber capacitor value influences clamp level, energy storage, and transient duration. The resistor must then be matched to power dissipation and recovery timing.
RCD snubbers are widely discussed because they balance effectiveness and practical implementation. For many isolated converter designs, they remain a standard solution.
A non-dissipative snubber is designed to recover or redirect transient energy rather than losing it mainly as heat. In these circuits, the Snubber capacitor still plays a storage role, but the overall topology routes energy back into the supply or load path. This can improve efficiency in some high-power systems.
These structures are more complex than simple snubber resistor capacitor networks and are not always necessary in conventional industrial designs. However, they become attractive where switching loss and thermal management are tightly constrained. The Snubber capacitor used in such designs must still tolerate rapid charge-discharge cycles and elevated current stress.
Because of their complexity, non-dissipative snubbers demand closer integration with the full converter design. Component selection, control strategy, and layout all affect final performance.
From a component perspective, the most common Snubber capacitor technology is metallized polypropylene film. This material provides low loss, high insulation resistance, self-healing behavior, and strong electrical stability under repetitive switching stress. For many engineers, polypropylene film is the default choice for Snubber capacitor applications.

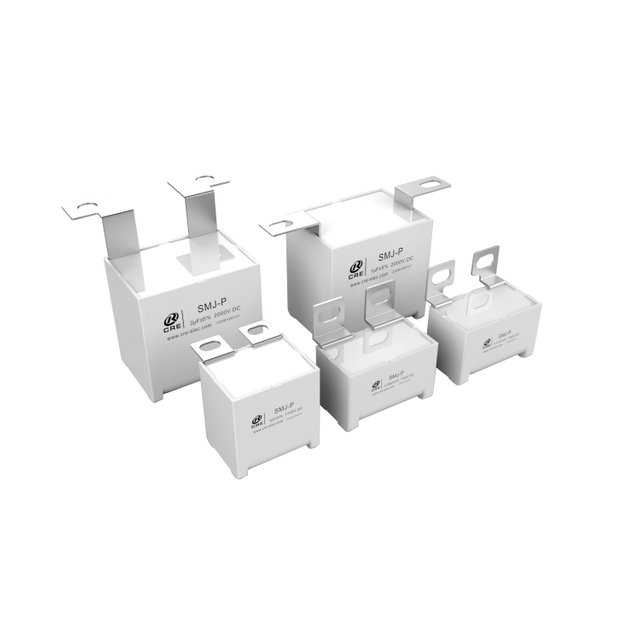

Package variations create additional types in the practical sense. A plastic box Snubber capacitor is often selected for IGBT assemblies with compact mounting requirements, while axial lead versions may be preferred in layouts needing flexible wiring. High-voltage GTO systems may require a Snubber capacitor with copper nut leads, stronger insulation, and very high DC rating.
These physical forms are not merely mechanical variations. They directly influence inductance, thermal behavior, mounting convenience, and suitability for different switching topologies.
Type | Circuit Structure | Typical Use | Main Advantage | Main Limitation |
RC snubber | Resistor + capacitor | General switching suppression | Simple and effective | Dissipates energy as heat |
RC-diode snubber | Resistor + capacitor + diode path | Directional switching control | Flexible waveform control | More design variables |
RCD snubber | Resistor + capacitor + diode clamp | Transformer and converter circuits | Controlled clamping | Requires tuning |
Non-dissipative snubber | Energy recovery topology | High-power efficient systems | Lower loss potential | Higher complexity |
Film Snubber capacitor solution | Component technology choice | IGBT, GTO, SMPS, resonant circuits | Low ESR/ESL, high dv/dt | Must match layout and stress |
The voltage rating of a Snubber capacitor must exceed actual circuit stress, including overshoot, tolerance, and abnormal conditions. If voltage margin is too small, lifetime may shorten and failure risk may rise even when nominal voltage appears acceptable. In high-voltage circuits, conservative derating is often used.
Testing under real waveforms is important because peak transient voltage may differ from design estimates. A Snubber capacitor selected only by DC bus voltage may be underspecified when parasitic effects are strong. The same applies in a snubber resistor capacitor network, where resistor behavior also affects capacitor stress.
Safety factors such as insulation resistance, flame retardation, and standard compliance should also be considered. Their importance increases as energy level and temperature rise grow.
Capacitance determines how much transient energy a Snubber capacitor can absorb and how it shapes the switching waveform. Too little capacitance may not suppress overshoot effectively, while too much may increase switching loss or affect timing. Proper selection usually requires both calculation and oscilloscope verification.
dv/dt capability is also critical. A Snubber capacitor in fast-switching circuits must withstand rapid voltage change without degradation or excessive heating. High dv/dt performance is often a key feature of dedicated film capacitors.
Pulse current capability should be checked carefully as well. In many IGBT and GTO circuits, a Snubber capacitor must handle repeated high-current charge and discharge cycles, not only steady RMS current.
Low ESR reduces loss and heat, while low ESL improves high-frequency response and suppression performance. A Snubber capacitor with poor inductive behavior may not control spikes well even if capacitance is sufficient. That is why package shape and terminal design matter along with nominal value.
Temperature capability influences both short-term performance and long-term reliability. A Snubber capacitor placed near semiconductors, magnetic parts, or enclosed assemblies may face continuous thermal stress, so hotspot temperature and lifetime rating should be reviewed carefully. Humidity resistance may also matter in industrial and outdoor use.

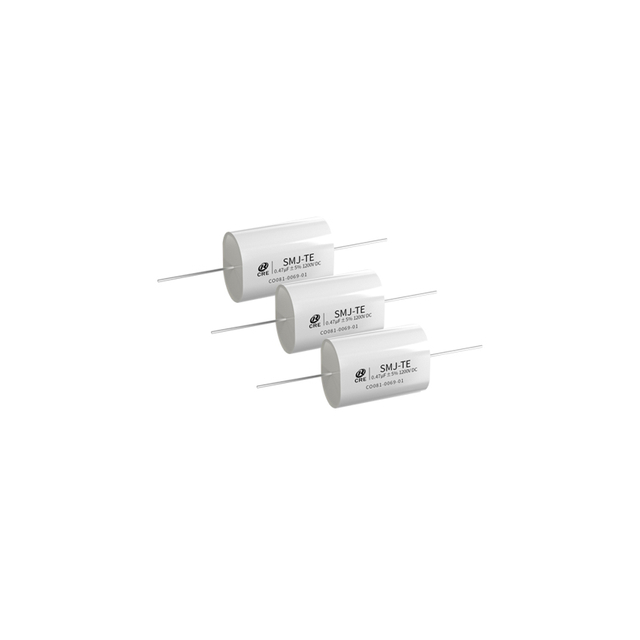

Mounting style should fit the electrical layout. Plastic box, axial lead, radial form, and lug terminal structures each involve different tradeoffs in loop inductance, installation, and mechanical strength.
Standards such as IEC61071 are important when choosing a Snubber capacitor for demanding power electronic environments. They indicate that the component is designed for high-stress industrial operation. Flame resistance and environmental endurance are also relevant in many systems.
Service life should be evaluated under actual thermal and voltage conditions, not only by nameplate data. A Snubber capacitor with long life at controlled hotspot temperature can maintain more stable operation over extended duty cycles. This often separates industrial-grade capacitors from general alternatives.
When a snubber resistor capacitor network is used, lifetime also depends on the resistor and the surrounding thermal path. The full network should be assessed together rather than as separate parts.
A Snubber capacitor is a key protective component in modern power electronics, especially in systems exposed to voltage overshoot, ringing, and repeated switching stress. Understanding Snubber capacitor types involves both circuit topology and capacitor construction, including RC, RC-diode, RCD, and non-dissipative designs, as well as film capacitor options for IGBT, GTO, switching power supply, and resonant applications. Selection should consider voltage rating, capacitance, dv/dt capability, pulse current, ESR, ESL, thermal endurance, and mounting style to ensure reliable operation under real waveform conditions.
For industrial projects needing high-reliability film capacitors for snubber and resonant use, CRE NEW ENERGY PTE. LTD. can be introduced as a source of specialized product solutions matching these technical needs.
A Snubber capacitor absorbs transient energy generated during switching and reduces voltage overshoot across semiconductors or inductive elements. It also suppresses ringing and can improve waveform stability. In many circuits, it works together with a resistor in a snubber resistor capacitor network.
At the circuit level, common types include RC snubbers, RC-diode snubbers, RCD snubbers, and non-dissipative snubbers. At the component level, metallized polypropylene film is one of the most common Snubber capacitor technologies. Different package structures are used for IGBT, GTO, and resonant systems.
Polypropylene film offers low loss, low ESR, low ESL, and strong dv/dt capability. These properties make a Snubber capacitor more suitable for high-frequency and pulse-current operation. Self-healing behavior and stable insulation performance are also valuable in industrial power electronics.
