In power electronics, electrical noise is not just a small disturbance. It can affect signal quality, reduce system stability, disturb nearby equipment, and make EMC testing more difficult.
This is where an EMC filter capacitor becomes important.
An EMC filter capacitor is mainly used to control electromagnetic interference, also called EMI. It helps reduce unwanted high-frequency noise in power supply systems, inverters, converters, motor drives, UPS systems, renewable energy equipment, and other electronic devices.
For inverter manufacturers, power supply designers, industrial automation suppliers, and procurement engineers, the question is not only “What does this capacitor do?” A better question is: what kind of noise problem does it help control, and how should the right capacitor be selected?
CRE offers EMC-Filter Capacitors designed for EMI suppression, high-frequency noise filtering, and better electromagnetic compatibility in power supply systems.
An EMC filter capacitor helps control unwanted electrical noise that travels through power lines or appears in electronic circuits.
In simple terms, it helps stop noise from spreading.
In power electronics, switching devices turn on and off very quickly. This fast switching can create high-frequency noise. If the noise is not controlled, it may travel through cables, power lines, metal enclosures, or nearby circuits.
An EMC filter capacitor gives this unwanted noise a path to be filtered or reduced, depending on the circuit design. This helps the system operate more smoothly and reduces the risk of interference with other equipment.
That is why EMC capacitors are often used in power supplies, inverters, converters, motor drives, solar inverters, UPS systems, and industrial control equipment.
The main thing an EMC filter capacitor controls is EMI noise.
EMI means electromagnetic interference. It can come from switching power supplies, inverters, relays, motors, high-speed circuits, and other electrical equipment. In industrial systems, EMI can cause unstable operation, communication errors, signal disturbance, or failed EMC testing.
A well-designed EMI suppression capacitor helps reduce this noise before it spreads too far.
This does not mean the capacitor works alone. EMC control usually depends on the whole filter circuit, including capacitors, inductors, grounding, layout, shielding, and wiring. But the capacitor is still one of the key components.
Without suitable EMC capacitors, high-frequency interference may remain in the system and affect both performance and compliance.
Many EMC problems are caused by high-frequency noise.
This kind of noise is common in modern power electronics because switching speeds are faster and equipment is more compact. A circuit may work normally from a power output view, but still create high-frequency interference that affects nearby devices.
This is why high-frequency noise filtering is important.
CRE EMC filter capacitors are designed with low ESR and low ESL, which helps them filter high-frequency noise more effectively. Low ESR helps reduce losses, while low ESL helps the capacitor respond better at higher frequencies.
For engineers and OEM buyers, these two parameters matter. A capacitor with poor high-frequency behavior may not solve the real EMC problem, even if its capacitance value looks acceptable.
An EMC filter capacitor is also used for power supply noise suppression.
Power supplies often create conducted noise that moves along input or output lines. If this noise is not controlled, it may affect other parts of the same system or spread into the grid side.
In industrial power supplies, this can cause unstable sensor signals, communication problems, or equipment malfunction. In renewable energy systems, noise may affect inverter performance or connected control devices.
EMC capacitors help smooth out part of this unwanted noise and improve the electrical environment of the system.
For buyers, this means EMC capacitors are not only chosen for passing tests. They also help support long-term system stability.
Many electronic products must meet EMC requirements before they can enter the market.
An EMC compliance capacitor helps reduce interference so the equipment has a better chance of meeting EMC standards. This is especially important for exporters, OEM manufacturers, and power electronics companies selling into regulated markets.
If a product fails EMC testing, the problem may not be easy to fix at the end of development. Changing layout, adding filters, or replacing components late in the project can cost time and money.
That is why EMC filter capacitors should be considered early in the design stage.
For power electronics suppliers, choosing the right capacitor from the beginning can reduce testing risk and make product development smoother.
EMC filter capacitors are used in many power systems where electrical noise needs to be controlled.
They are common in industrial power supplies, frequency converters, motor drives, UPS systems, solar inverters, wind power equipment, EV chargers, automation systems, and communication power equipment.

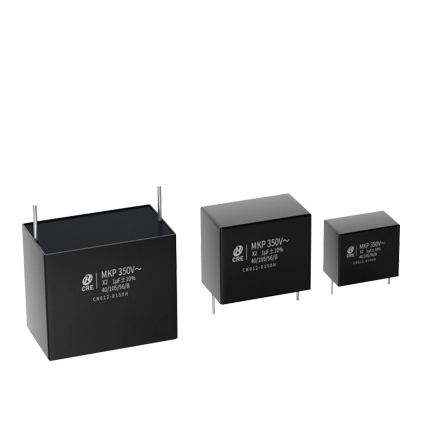

CRE’s Plastic Box Series MKP EMI Suppression Capacitor X2 is used for across-the-line EMI suppression and is also applied in AC and harmonic filtering, UPS systems, solar inverters with LCL filters, and motor drives.
This makes EMC filter capacitors useful for both industrial equipment and renewable energy projects.
EMC filter capacitors and AC filter capacitors can sometimes appear in related systems, but their focus is not exactly the same.
An EMC filter capacitor mainly targets electromagnetic interference and high-frequency noise. An AC filter capacitor is more often used to improve power quality, reduce ripple current, support harmonic filtering, and stabilize AC output.
In some applications, these functions may overlap. For example, an inverter system may need both EMI suppression and AC output filtering.
Capacitor Type | Main Control Target | Common Use |
|---|---|---|
EMC filter capacitor | EMI noise and high-frequency interference | Power supplies, inverters, EMC circuits |
AC filter capacitor | Ripple, harmonics, and AC power quality | Inverters, industrial power systems, renewable energy |
X1/X2 suppression capacitor | Line-side interference suppression | Across-the-line or line-related EMI control |
For buyers, the key is to understand the circuit goal. If the main problem is noise and EMC compliance, start with EMC filtering. If the issue is AC output quality or harmonics, AC-Filter Capacitors may also be needed.
In EMC filtering, low ESR and low ESL are practical performance points.
ESR affects losses and heat. If ESR is too high, the capacitor may generate more heat and reduce efficiency. ESL affects high-frequency response. If ESL is too high, the capacitor may not perform well at the frequencies where noise needs to be controlled.
This is why a general capacitor is not always enough for EMC filtering.
Power electronics systems often generate fast switching noise. To control that noise, the capacitor must perform well in the frequency range where interference appears.
CRE EMC filter capacitors are designed with low ESR and low ESL, making them suitable for filtering high-frequency noise and improving system stability.
CRE EMC filter capacitors are designed for industrial and power electronics applications where stable noise control matters.
One key advantage is effective EMI suppression. These capacitors help reduce electromagnetic interference in power supply systems, inverters, converters, and industrial equipment. This supports smoother operation and helps buyers prepare for EMC compliance requirements.
Another advantage is low ESR and low ESL design. This improves high-frequency filtering performance and helps reduce losses in demanding power circuits. For inverter manufacturers and power supply OEMs, this can make filter design more reliable.
CRE also offers practical product options such as X2 EMI suppression capacitors and X1 EMI suppression capacitors, giving buyers different choices for interference suppression needs.
For non-standard projects, CRE provides custom capacitor solutions. Buyers can discuss filtering needs, voltage rating, capacitance, structure, installation size, and system application instead of forcing a standard model into every design.
This flexibility is useful for industrial power supply manufacturers, renewable energy equipment suppliers, automation equipment builders, and capacitor distributors.
Choosing an EMC filter capacitor should start with the noise problem.
Engineers need to know where the interference comes from, how it travels, and which frequency range needs to be controlled. Without this information, it is easy to choose a capacitor that looks correct but does not solve the real problem.
The operating voltage, capacitance, safety class, temperature range, ESR, ESL, mounting structure, and certification needs should all be checked. For line-side EMI suppression, X1 or X2 capacitor selection must also match the circuit position and safety requirements.
Layout matters too. Even a good capacitor may perform poorly if the wiring is too long, grounding is weak, or the filter circuit is placed in the wrong position.
For procurement teams, it is better to share the application with the supplier. A capacitor used in a solar inverter may not have the same needs as one used in a small power supply or an industrial motor drive.
One common mistake is choosing only by capacitance value. In EMC filtering, ESR, ESL, safety class, voltage rating, and installation position can be just as important.
Another mistake is treating EMI and EMC as the same thing. EMI is the interference itself, while EMC is the ability of equipment to work properly in its electromagnetic environment. An EMC filter capacitor helps reduce EMI so the whole product can achieve better EMC performance.
Some buyers also wait until EMC testing fails before thinking about filter components. This often leads to rushed redesign. It is better to plan EMC filtering earlier.
For B-end buyers, especially OEMs and industrial equipment manufacturers, early capacitor selection can save project time and reduce testing risk.
Standard EMC capacitors can fit many systems, but some projects need a more specific solution.
Custom EMC filter capacitors may be useful when the system has limited space, special voltage requirements, unusual mounting needs, or strict noise control targets. They may also help when the product must fit a specific inverter, converter, UPS, renewable energy system, or industrial power supply design.
A custom approach does not mean making the product complicated. It means matching the capacitor more closely to the real system.
For OEM projects and long-term supply programs, this can improve product fit, reduce selection mistakes, and support more stable production.
An EMC filter capacitor is used to control electromagnetic interference, high-frequency noise, power supply noise, and EMC compliance problems in power electronics. It is especially important in systems with fast switching, compact layouts, and strict reliability requirements.
For industrial power supplies, inverters, motor drives, UPS systems, solar inverters, and automation equipment, the right capacitor can improve noise control and support stable operation. However, EMC performance depends on more than capacitance. Low ESR, low ESL, safety class, voltage rating, layout, grounding, and application conditions all matter.
CRE provides EMC-Filter Capacitors, X1/X2 EMI suppression capacitors, AC-Filter Capacitors, and custom capacitor solutions for industrial and energy applications. With effective EMI suppression, low ESR and low ESL design, and flexible customization support, CRE can help power electronics manufacturers, equipment suppliers, and capacitor distributors choose products that better match their EMC filtering needs.
An EMC filter capacitor mainly controls electromagnetic interference, high-frequency noise, and power supply noise in electronic and power systems.
They are closely related. An EMI suppression capacitor reduces interference, while an EMC filter capacitor helps the whole system achieve better electromagnetic compatibility.
They are commonly used in power supplies, inverters, converters, UPS systems, motor drives, renewable energy equipment, and industrial control systems.
