Why Use Snubber Resistor Capacitor in Circuits?

In power electronic systems, fast switching and stray inductance often create voltage overshoot, ringing, and electromagnetic disturbance. A snubber resistor‑capacitor (RC) network – containing a dedicated snubber capacitor – absorbs transient energy, controls switching waveforms, and protects IGBTs, MOSFETs, GTOs, and other semiconductors. This combination is widely used in industrial power supplies, motor drives, inverters, and high‑voltage switching equipment to improve reliability and reduce electrical stress.

Why Use a Snubber Resistor Capacitor?

In fast‑switching power circuits, parasitic inductance is unavoidable. When a semiconductor turns off, the energy stored in stray inductance must be released. Without a controlled path, it creates three major problems:

• Voltage overshoot – spikes that push devices beyond their safe operating area.

• Ringing – oscillations that increase EMI and cause false triggering.

• Repetitive stress – gradual degradation of IGBTs, MOSFETs, and GTOs.

A snubber RC network directly addresses these issues. Here is why it is essential:

1. Absorbs Switching Energy

During turn‑off, the snubber capacitor provides a temporary low‑impedance path, capturing the energy that would otherwise appear as a sharp voltage spike. This reduces peak stress on the switching device.

2. Limits Voltage Overshoot

By slowing the rate of voltage rise (dv/dt), the snubber capacitor keeps the device voltage within its rated limits. This is especially critical in IGBT protection and GTO snubber applications where overshoot can exceed 2× the bus voltage.

3. Reduces Ringing and Oscillation

Parasitic inductance and capacitance form a resonant tank. The capacitor captures transient energy, and the resistor dissipates it, damping the oscillation. The result is a cleaner waveform with lower EMI.

4. Protects Semiconductors and Magnetic Components

• Semiconductors (IGBT, MOSFET, GTO, fast diodes) – snubbers improve operating margin and extend lifetime.

• Transformers and inductors – snubbers reduce insulation stress caused by leakage inductance spikes.

5. Enables Reliable System Operation

With a properly selected snubber, you get:

• Lower electromagnetic interference (EMI)

• Reduced switching losses (when optimally tuned)

• Higher uptime and longer equipment life

In short: Without a snubber, fast‑switching power circuits are prone to overvoltage failure and noisy operation. With the right snubber resistor capacitor network, the switching waveform becomes stable, predictable, and reliable – even under repetitive pulse conditions.

How to Select a Snubber Capacitor – Key Selection Criteria

Choosing the correct snubber capacitor involves more than matching capacitance and voltage. Follow these six steps to ensure effective transient suppression.

2.1 Determine the Required Voltage Rating

• Measure the actual peak voltage across the switching device under load (including overshoot).

• Add a safety margin: 1.5× to 2× of nominal bus voltage is common for high‑reliability designs.

• Select a capacitor whose rated voltage exceeds the measured peak.

2.2 Choose the Capacitance Value

• Too small → overshoot not suppressed.

• Too large → increased switching loss and higher peak current.

• Rule of thumb: C = I_peak × dt / dV, where dt/dV is the desired voltage rise time.

• Fine‑tune using oscilloscope waveforms: aim for a small amount of residual ringing without excessive overshoot.

2.3 Verify dv/dt Capability

• The capacitor must withstand the switching transition’s rate of voltage change.

• For IGBT and MOSFET circuits, look for dv/dt > 1000 V/μs; for GTO applications, even higher.

• Snubber capacitors are specifically designed with high dv/dt endurance.

2.4 Check Pulse Current (Peak & Repetitive)

• Even if average current is low, peak current can reach hundreds or thousands of amps.

• Verify both peak current and repetitive pulse current ratings.

• Low ESR and low ESL are essential to handle fast‑rising current without excessive heating.

2.5 Consider Thermal and Package Requirements

• Operating temperature: Ensure the capacitor’s rating exceeds worst‑case ambient plus self‑heating.

• Termination style: Axial leads, copper nut, tin‑plated inserts, or lug terminals – choose based on mounting and loop inductance.

• Low ESL/ESR construction (non‑inductive winding, mylar tape, dry resin infusion) is critical for fast transients.

2.6 Prioritize Layout and Proximity

• Place the snubber capacitor as close as possible to the switching device (IGBT/GTO/MOSFET).

• Keep the loop area small to minimize parasitic inductance.

• A good component value can fail if layout adds too much stray inductance.

CRE Snubber Capacitor Selection Table

CRE offers four dedicated snubber capacitor series for IGBT, GTO, and inverter applications. All series support customization, comply with IEC 61071, and are backed by IATF 16949 and ISO 9001 certifications.

Common advantages across all CRE snubber capacitors:

• Double‑sided metallized film for enhanced dv/dt

• Life expectancy: typically 100,000 hours at rated conditions

• Low ESR & low ESL for fast transient response

• Lead time: 4 weeks.

Conclusion

A snubber resistor capacitor network is essential in power electronics where fast switching interacts with parasitic inductance. By absorbing pulse energy, limiting overshoot, and reducing ringing, snubber capacitors improve the reliability of IGBTs, GTOs, MOSFETs, transformers, and high‑frequency power stages.

Effective selection depends on voltage rating, dv/dt capability, pulse current, ESR, ESL, thermal environment, and layout. CRE NEW ENERGY offers specialized snubber capacitor solutions with full customization, fast lead times, and free samples – backed by over 40 years of film capacitor expertise and IATF 16949 certification.

For engineers seeking reliable transient suppression, CRE’s SMJ series (TC, TE, P) and MKP inverter capacitors provide application‑matched performance.

FAQ

Q1: How do I calculate the right snubber capacitance value for my switching circuit?

A practical starting point is C = I_peak × dt / dV, where dt/dV represents the desired rate of voltage rise during the switching transition. However, this formula gives an initial estimate — the final value should always be verified using oscilloscope waveforms under real load conditions. If the capacitance is too small, voltage overshoot remains; if too large, switching loss increases and peak inrush current into the capacitor rises. Iterative tuning on the bench is a necessary part of snubber design, not just a calculation exercise.

Q2: What role does PCB layout play in snubber effectiveness, and can a good capacitor compensate for poor layout?

Layout is as critical as component selection — a high-quality snubber capacitor with low ESL will underperform if long PCB traces or wide current loops add parasitic inductance back into the snubber path. The capacitor must be placed as close as possible to the switching device (IGBT, MOSFET, or GTO), with the loop area between the capacitor, switching device, and bus kept as small as possible. No capacitor specification can compensate for a poorly routed layout; both must be addressed together.

Q3: How do I choose between the SMJ-P, RMJ-PC, SMJ-TE, and SMJ-TC series for my application?

The choice depends on voltage level, device type, and mounting requirements.

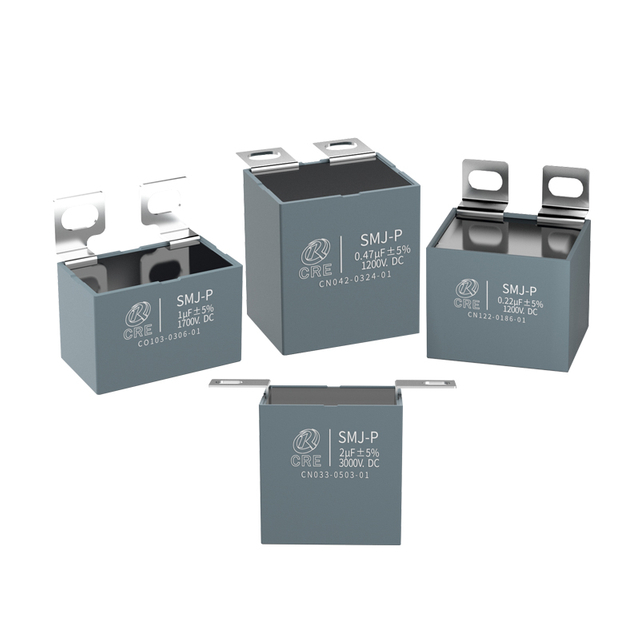

SMJ-P (plastic box, 700–3000V DC) offers easy installation with tin-plated inserts and UL94 V-0 flame rating, making it a practical choice for general IGBT snubber applications in enclosed power assemblies.

RMJ-PC (cylindrical plastic shell, 1200–2000V DC, 1–8μF) is designed for series/parallel resonant circuits in welding power supplies and induction heating equipment, with high pulse current rating, high AC current capacity, and very low ESR.

SMJ-TE (axial leads, Mylar tape, 630–2000V DC) suits IGBT snubber layouts where flexible wiring is preferred, with double-sided metallized film to enhance dv/dt performance.

SMJ-TC (copper nut leads, Mylar tape, 3000–10000V DC) is designed for high-voltage GTO snubber applications where compact size and very high dv/dt capability are needed.

When in doubt, share your rated capacitance/rated voltage(DC or AC), switching frequency, and layout constraints with CRE's engineering team for a matched recommendation.

Q4: A snubber RC network generates heat through the resistor — how should that be managed in a dense power assembly?

The resistor in an RC snubber dissipates the transient energy stored in the capacitor as heat on every switching cycle. In high-frequency or high-power circuits, this can add up to significant continuous power dissipation. The resistor must be rated for this average power, not just the peak pulse energy. Thermal management considerations include selecting a resistor with adequate power rating and thermal resistance, ensuring airflow around the component, and avoiding placement directly against heat-sensitive parts. If overall dissipation is too high, a non-dissipative snubber topology that recovers energy back into the circuit may be worth evaluating.
