Are Capacitors High Pass Filters

Capacitors are not high-pass filters by themselves, but they are essential to high-pass filtering because their reactance decreases as frequency increases. This allows them to block DC and pass higher-frequency signals in the right circuit. The same behavior also makes capacitors important in coupling, timing, filtering, and pulse systems. In demanding power applications, Pulse Capacitors and snubber resistor capacitor networks are used to control transients, reduce overshoot, and manage fast energy transfer.

Key Takeaways

● A capacitor alone is not a high-pass filter.

● Capacitors pass high-frequency signals more easily than low-frequency signals.

● Pulse Capacitors are built for rapid discharge, pulse current, and high dv/dt stress.

● A snubber resistor capacitor network helps suppress overshoot and ringing.

● Capacitors are used in filtering, timing, coupling, protection, and pulse power circuits.

● Capacitor selection depends on electrical stress, frequency, thermal conditions, and layout.



What Does a Capacitor Do in a Circuit?

A capacitor stores electrical energy and releases it when circuit conditions change. This charging and discharging behavior supports filtering, timing, waveform shaping, and pulse discharge.

Capacitors also respond strongly to changing voltage, which is why they block steady DC but allow AC content to pass. That makes them useful in signal coupling, frequency response control, and noise suppression.

Their role depends on the circuit. In one design, a capacitor smooths a power rail. In another, it sets timing. In pulse and switching systems, Pulse Capacitors are chosen for fast response, pulse endurance, and transient reliability. In a snubber resistor capacitor network, the capacitor works with a resistor to absorb and dissipate switching energy.



Are Capacitors High Pass Filters?

A Capacitor Alone Is Not a Filter

A capacitor by itself is not a complete high-pass filter. A real filter is a circuit made from multiple elements. High-pass behavior appears only when the capacitor is placed in the proper topology with resistance or other impedance.

Why Capacitors Pass High Frequencies

Capacitive reactance is:

Xc = 1 / (2πfC)

As frequency increases, reactance decreases. So a capacitor opposes high-frequency AC less than low-frequency AC. At DC, after charging, current no longer flows continuously.

This is why capacitors are linked to high-pass behavior. The same fast-response property is also valuable in Pulse Capacitors used in switching and pulse circuits.

RC High-Pass Filter Basics

A basic RC high-pass filter places the capacitor in series with the input and a resistor to ground, with output across the resistor. Low-frequency signals are attenuated because capacitor reactance is high. High-frequency signals pass more easily because reactance is lower.

The cutoff frequency is:

fc = 1 / (2πRC)

This same frequency-sensitive behavior also supports transient control in a snubber resistor capacitor network, even though that network is used for protection rather than signal filtering.

What Is the Role of Capacitors in Filter Circuits?

In high-pass filters, capacitors help block low-frequency content and pass faster signal changes. In low-pass filters, they often divert high-frequency content away from the output. In band-pass and band-stop circuits, they work with resistors and inductors to shape more selective frequency behavior.

So a capacitor does not have one fixed filter identity. Its effect depends on circuit placement and surrounding impedance.

Capacitors also improve waveform quality by reducing ripple, suppressing noise, and limiting unwanted oscillation. In high-speed power systems, Pulse Capacitors may support this process by handling fast transient energy. When used with a resistor in a snubber resistor capacitor arrangement, they can reduce ringing and improve switching stability.



How Do Capacitors Work in Energy Storage and Pulse Circuits?

Capacitors are useful where energy must be stored and released quickly. Unlike batteries, which are better for long-duration output, capacitors are better for short, high-power bursts. This makes them important in pulse power systems, defibrillators, and Marx generators.

In these applications, capacitor selection depends on more than capacitance value. Voltage rating, pulse current capability, dielectric stability, ESR, ESL, and thermal behavior are all important.

Pulse Capacitors are designed for rapid discharge, repetitive stress, and strong pulse-current handling. They may be used alongside larger energy-storage capacitors, while a snubber resistor capacitor network helps reduce overshoot and ringing around switching paths.

Typical Roles in Pulse Systems



What Role Do Capacitors Play in Coupling, Decoupling, and Timing?

Coupling

A coupling capacitor passes AC signals from one stage to another while blocking differences in DC bias. This allows two circuit sections to exchange signal information without forcing them to share the same operating voltage. Coupling capacitors are widely used in amplifier stages, sensor interfaces, and communication circuits where DC isolation is necessary but signal transfer must be preserved.

The capacitor value must be chosen carefully. If the capacitance is too small, low-frequency components are attenuated and the signal may lose amplitude or waveform accuracy. In practical designs, the coupling capacitor works with the input impedance of the next stage to form a high-pass response, so both capacitance and load conditions affect the final bandwidth.

Decoupling

A decoupling capacitor provides a local source of charge for active devices during sudden current demand and shunts high-frequency noise away from sensitive nodes. This helps stabilize the supply voltage, reduce unwanted interaction between circuit blocks, and improve noise immunity in digital, analog, and mixed-signal systems.

Good placement is critical. Even the correct capacitor value may perform poorly if the component is too far from the current loop it is meant to support. Lead length, trace inductance, and loop area all affect real high-frequency behavior. For this reason, decoupling design usually focuses not only on capacitance value, but also on low impedance, low ESL, and close physical placement to the device pins or switching path.

Timing

In RC timing circuits, the charging and discharging behavior of the capacitor determines how quickly the circuit responds. The time constant is:

τ = RC

This value defines the rate at which voltage rises or falls toward its final level. A larger capacitance increases the time constant and slows the response, while a smaller capacitance reduces the time constant and speeds it up. This principle is widely used in delay circuits, pulse shaping, oscillators, and simple control networks.

In fast switching and pulse systems, capacitors can also affect timing in a broader sense by influencing how quickly energy is transferred and how rapidly transient voltage develops across a device. Pulse Capacitors, in particular, are selected when repetitive fast charge-discharge behavior, high pulse current, and controlled waveform response are required.

How Are Capacitors Used in Protection and Voltage Stabilization?

Capacitors are often used to reduce transient overvoltage caused by inductive switching. A capacitor can absorb part of the spike energy and lower peak stress on semiconductors or other components.

When a resistor is added, the result is a snubber resistor capacitor network. The resistor dissipates captured energy and damps oscillation, improving transient control.

Capacitors also stabilize voltage by storing charge when supply voltage rises and releasing it when voltage falls. In power supplies and DC bus circuits, this reduces ripple and improves supply quality.

For real performance, layout matters as much as component value. Connection length, loop area, ESR, ESL, and package inductance all affect how well a capacitor works, especially under fast dv/dt and pulse current conditions.



CRE Pulse Capacitor Series – Recommended for High-Energy & Fast-Discharge Applications

CRE offers three specialized pulse capacitor series to meet different high‑energy, fast‑discharge application needs — from defibrillators and EVs to high‑voltage pulse power systems. All series support full customization, with free samples, fast lead times (7–10 days), and IATF 16949 / IEC 61071 compliance.

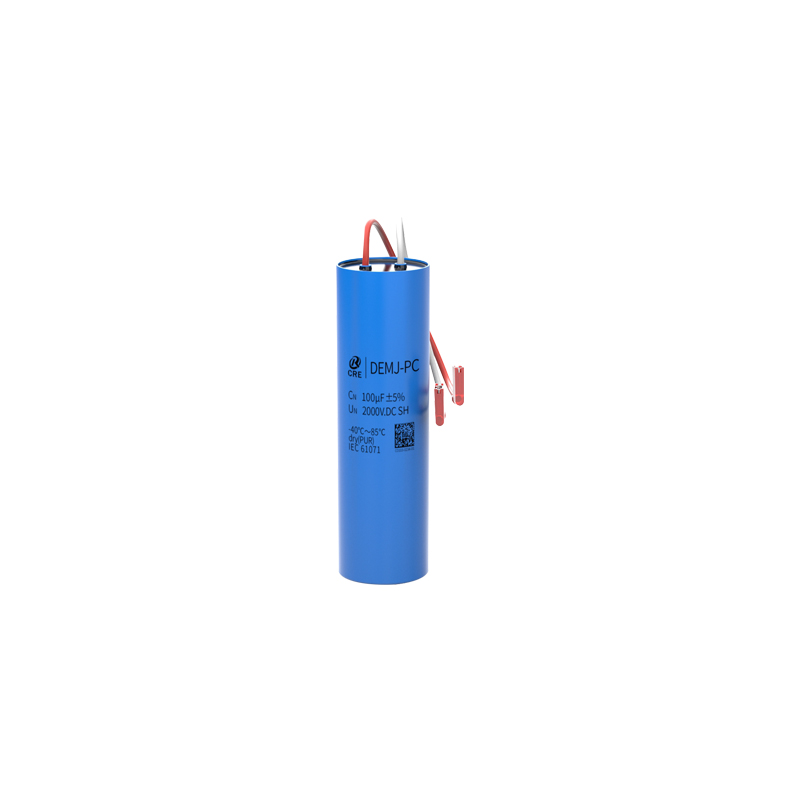

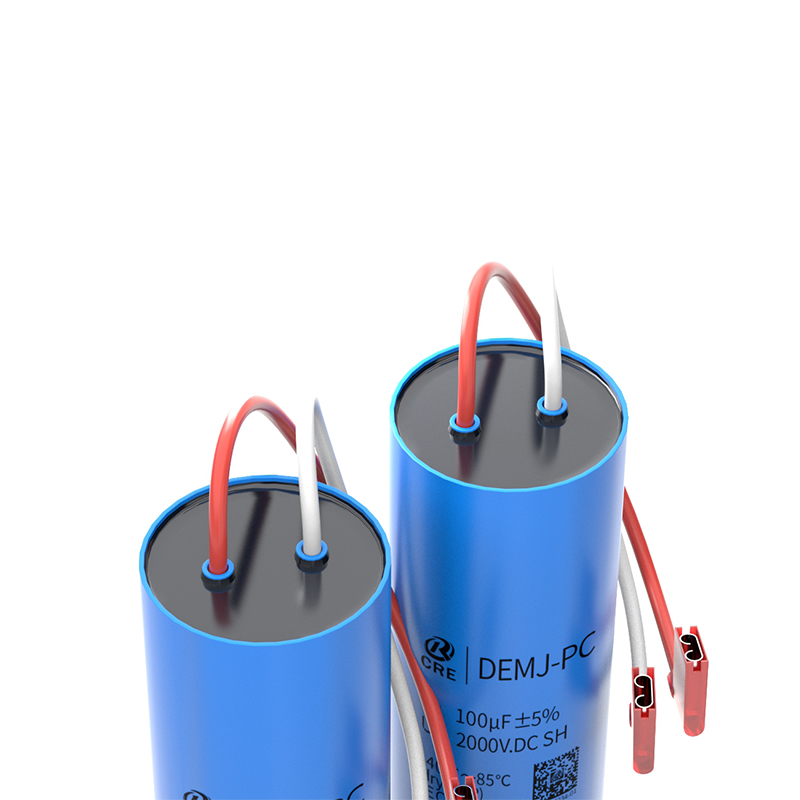

1. DEMJ‑PC – Plastic Cylindrical Pulse Capacitor for Defibrillator

Application: External defibrillator, pulse power applications.

Key Parameters:

• Capacitance: 32μF – 200μF

• Rated voltage: 1500V.DC – 5000V.DC

• Energy: 400J – 500J

• Tolerance: ±5%(J) / ±10%(K)

• Withstand strike current: 5 – 10kA

• Lifetime: >30,000 pulses (vs. market 10,000)

• Size: 50% smaller and lighter than conventional designs

• Operating temp.: -40℃ to +85℃ (max 105℃)

2. DMJ‑PC – Cylindrical Plastic Shell Power Film Capacitor

Application: DC-Link circuits, energy storage filtering, PV inverters, wind power converters, EV/HEV, SVG/SVC.

Key Parameters:

• Capacitance: 50μF – 380μF

• Rated voltage: 450V.DC – 1500V.DC

• Tolerance: ±5%(J) / ±10%(K)

• Low ESR, high ripple current, high dv/dt

• Can replace electrolytic capacitors (longer life)

• Copper nut/screw leads, easy installation

• Life expectancy: 100,000h (UN, hotspot ≤70℃)

• Standards: IEC 61071, IEC 61881

3. MKMJ‑S – Metal Case Dry Resin Pulse Capacitor

Application: High‑power high‑frequency pulse laser, welding power supply, Marx generator, cable fault detection, high‑voltage insulation tester.

Key Parameters:

• Capacitance: 0.01μF – 50,000μF

• Rated voltage: 3000V.DC – 100kV.DC

• Tolerance: ±5%(J) / ±10%(K)

• Energy: 100 – 100,000J

• Low ESR, excellent self‑healing

• High pulse current, high dv/dt

• Metal case, open design for low inductance

• Life expectancy: 1×10³ – 1×10⁹ shots

Need help selecting the right series?

[Contact CRE] for free samples, technical support, and customized solutions.

Conclusion

Capacitors are not high-pass filters on their own, but they are essential to high-pass filter circuits because their reactance falls as frequency rises. The same property makes them useful in coupling, filtering, timing, energy storage, and transient suppression. In demanding applications, Pulse Capacitors are selected for fast discharge, pulse endurance, and high-stress operation, while a snubber resistor capacitor network helps control overshoot and ringing.



FAQ

Q1: Is a capacitor by itself a high-pass filter?

No. A single capacitor cannot function as a high-pass filter on its own; it is simply a passive component. True high-pass filter performance is achieved only when a capacitor is integrated into a specific circuit topology with resistors or other impedance elements. While a capacitor's reactance (XC=½πfC) decreases as frequency rises, this "frequency-dependent" behavior only acts as a filter when combined with the right circuit design.

Q2: What makes a pulse capacitor different from a standard capacitor?

Pulse capacitors are engineered to withstand extreme dv/dt stress, rapid discharge, and repetitive high-current surges. Standard capacitors typically fail under the rigorous demands of defibrillators, Marx generators, or pulse laser power supplies. CRE’s specialized series (such as DEMJ-PC, MKMJ-PC, MKMJ-PS, and MKMJ-S) are optimized for low ESR/ESL and high energy density to ensure long-term reliability in these harsh environments.

Q3: What is a Snubber RC network and why is it used?

A Snubber RC network (a capacitor in series with a resistor) is a vital circuit protection strategy. When inductive loads switch, they generate transient voltage spikes. The capacitor absorbs this excess energy, while the resistor dampens oscillations, effectively suppressing ringing and protecting sensitive semiconductor components from overvoltage damage.

Q4: How do capacitors function in coupling, decoupling, and timing circuits?

• Coupling: Connects circuit stages to pass AC signals while blocking unwanted DC bias.

• Decoupling: Acts as a local charge reservoir for active components, bypassing high-frequency noise to ground to ensure stable power delivery.

• Timing: Uses the charge/discharge time constant (τ= RC) to precisely control oscillation, pulse shaping, or delay intervals in electronic systems.
