Views: 88 Author: Site Editor Publish Time: 2026-05-11 Origin: Site
Induction heating is widely used in modern industry because it heats metal quickly, accurately, and repeatedly under controlled electrical conditions. Unlike flame or resistance heating, it transfers energy directly into conductive material through electromagnetic induction, making it well suited for processes that require speed, localized heating, and consistent results. In this type of system, the resonant circuit plays a central role in power generation and stability.
Within that circuit, Induction Heating Capacitors are essential. They work with the coil and power supply to set operating frequency, support current flow, and maintain stable performance under high thermal and voltage stress. Their role becomes especially important in Water Cooled systems, heavy-duty voltage systems, and demanding applications such as hardening, forging, melting, and casting devices.
● Induction Heating Capacitors are essential in industries that use high-frequency or medium-frequency induction heating.
● Metal hardening, brazing, forging, melting, and casting devices are among the most common application areas.
● Capacitor performance influences resonance, thermal stability, current handling, and circuit performance.
● Water Cooled capacitor designs are widely used in continuous-duty and high-current industrial systems.
● In heavy industrial voltage systems, capacitor reliability affects both production consistency and equipment life.
● Industry demand is strongest where induction heating requires repeatable output, localized heating, and stable operation over long cycles.
Induction Heating Capacitors are used in resonant circuits that power induction heating equipment. In operation, the inductor coil and capacitor bank form an electrical network in which energy alternates between magnetic and electric fields. This resonant condition reduces reactive burden on the power source and supports efficient transfer of heating energy into the metal workpiece.
The capacitor is not merely a passive storage element in this environment. Its capacitance value influences resonant frequency, its loss characteristics affect heat generation inside the circuit, and its voltage endurance determines whether the system can operate safely under elevated electrical stress. In practical induction heating equipment, the capacitor bank must remain stable even when current levels rise sharply during continuous production.
Because the induction process relies on electrical matching, Induction Heating Capacitors are directly tied to system tuning. If capacitance drifts, if internal losses rise, or if thermal conditions become unstable, the resonant point can shift away from the intended operating range. Once that happens, heating efficiency, coil current behavior, and process consistency may all degrade.
Ordinary capacitors are not designed to withstand the current, frequency, and thermal stress found in induction heating equipment. Induction Heating Capacitors must tolerate high circulating AC current, repetitive voltage loading, and elevated internal temperatures over long operating periods. Their materials, structure, and cooling approach are therefore more specialized than those of standard industrial capacitors.
In many induction systems, the current circulating through the resonant loop is much higher than the input current supplied by the source. This places unusual stress on the capacitor bank and makes internal loss management extremely important. A capacitor that appears sufficient by basic capacitance value may still fail if its ESR, thermal performance, or frequency behavior is not appropriate for the circuit.
This difference becomes even more pronounced in Water Cooled installations. In such systems, capacitor design must account not only for electrical resonance but also for continuous heat removal. That is why Induction Heating Capacitors are selected according to a broader set of engineering criteria than general-purpose capacitor components.
The heat treatment sector relies heavily on induction heating for surface hardening, case hardening, tempering, and selective thermal processing. These applications demand precise control of heating depth, power density, and exposure time. Induction Heating Capacitors are central to this process because they help stabilize the resonant circuit that determines how energy is delivered to the workpiece.
In hardening systems, small variations in frequency or current behavior can affect the hardness profile and repeatability of treated parts. Components such as shafts, gears, bearings, and tools often require very consistent metallurgical outcomes, which means the electrical side of the system must remain stable over repeated cycles. This operating condition makes Induction Heating Capacitors especially important in industrial hardening lines.
The heat treatment industry also frequently uses automated production setups. Under automated cycling, the induction circuit is exposed to repeated thermal and electrical transitions. Capacitors in these systems must maintain consistent characteristics despite temperature rise, switching events, and load variation across long periods of operation.
Induction brazing is widely used where joints must be heated quickly and locally without exposing the entire assembly to excessive temperature. This is common in HVAC assemblies, electrical connectors, tubing systems, metal fittings, and precision component manufacturing. Induction Heating Capacitors support the resonant operation needed to produce concentrated and repeatable heating at the joint area.
Brazing lines often process components with different shapes, joint masses, and thermal responses. The circuit must therefore remain stable even when the effective load changes between part types or production batches. A properly designed capacitor bank helps maintain predictable electrical behavior, reducing the chance of unstable heating patterns or inconsistent brazed joints.
The same requirement applies to soldering applications that use induction heating at lower thermal ranges. Even when the power level is lower than in forging or melting, the need for stable circuit performance remains significant. Capacitor quality influences current flow, resonant matching, and the smoothness of the thermal cycle.
Forging operations use induction heating to raise the temperature of billets, rods, bars, and blanks before mechanical deformation. The objective is to create rapid and uniform preheating before the part enters the forming stage. In these high-power systems, Induction Heating Capacitors are essential because the resonant circuit must carry large currents while maintaining frequency stability and voltage endurance.
Forging equipment often runs under severe duty conditions, especially in production environments with high throughput. Long operating cycles generate substantial thermal stress in coils, busbars, switching devices, and capacitors. For that reason, Water Cooled capacitor structures are commonly associated with forging systems where air cooling alone may not be sufficient.
These applications also place strong demands on electrical robustness. When power transfer becomes unstable, workpiece temperature can deviate from the required range, affecting forming behavior, surface quality, and downstream mechanical performance. In this industry, capacitor reliability is directly tied to stable heating output.
The melting sector is one of the most important users of Induction Heating Capacitors. Metal melting furnaces, holding furnaces, and associated casting devices depend on high-current induction systems to convert electrical energy into thermal energy efficiently. The capacitor bank in these installations works with the coil to maintain resonance under demanding thermal and electrical conditions.
Melting operations involve sustained high loads and long runtime, which make thermal management a primary engineering concern. Capacitor heating cannot be treated as a minor issue because excessive temperature rise may alter capacitance, increase losses, and reduce service life. This is why Water Cooled capacitor assemblies are common in medium-frequency and high-power melting systems.
The same logic applies to casting devices connected to induction heating processes. In casting lines, stable molten metal temperature is essential for process continuity and product quality. If the resonant circuit becomes unstable, thermal control becomes less predictable, and the overall process can suffer.
Industry | Typical Induction Process | Main Electrical Need | Common Capacitor Feature |
Heat treatment | Surface hardening, tempering | Frequency stability | Low-loss resonant design |
Brazing | Localized joint heating | Precise resonance control | Stable capacitance under cycling |
Forging | Billet and bar heating | High current endurance | Water Cooled construction |
Melting | Furnace melting | Continuous-duty thermal stability | High-current capacitor bank |
Casting devices | Molten metal temperature support | Reliable power transfer | Voltage and thermal robustness |
The reason so many sectors rely on Induction Heating Capacitors is that induction heating cannot function efficiently without proper resonance. The capacitor and coil must operate together at a defined electrical point where reactive power is managed effectively and useful heating power reaches the workpiece. If the circuit is not tuned properly, the power source may experience greater stress while heating efficiency declines.
Industries such as forging and melting are especially sensitive to this condition because their systems operate at high load and often with large thermal inertia. Any shift in resonant behavior can alter coil current, voltage distribution, and heating rate. Under those conditions, the capacitor bank becomes an active determinant of production performance rather than a background component.
Stable resonance also affects repeatability. In applications like brazing and hardening, consistent energy transfer is required from one cycle to the next. Capacitors with good frequency behavior and low internal loss make it easier to maintain that consistency under real production conditions.
Thermal stability is one of the main reasons certain industries require specialized Induction Heating Capacitors rather than generic capacitor solutions. When induction equipment runs continuously, internal heating within the capacitor bank can become substantial. High operating temperature can lead to capacitance drift, dielectric stress, and reduced reliability.
The risk is greater in equipment that handles large current circulation over long periods. Melting systems, forging lines, and some casting devices often operate under exactly those conditions. In such environments, the capacitor bank must not only survive but maintain stable electrical characteristics while exposed to repeated load cycles and heat accumulation.
This is where Water Cooled designs become especially relevant. By removing heat more effectively, they support lower internal temperature and more stable long-term operation. In many industrial installations, thermal control is inseparable from capacitor selection.
Induction heating circuits can generate voltage levels across the capacitor bank that differ significantly from the nominal supply side. In resonant operation, the capacitor experiences electrical stress that depends on tuning, current, switching behavior, and load condition. As a result, Induction Heating Capacitors used in industrial voltage systems must be chosen for more than basic capacitance value.
Voltage endurance is particularly important in medium-frequency and high-frequency systems where resonant effects can amplify internal circuit stress. If the design margin is too narrow, the risk of breakdown increases, and the entire induction heating system may become less dependable. This affects not only component life but also process continuity.
Industries with long duty cycles and expensive thermal interruptions pay close attention to this factor. A capacitor bank that remains stable under demanding voltage systems contributes to safer operation and more predictable production output. That is why capacitor specification is often treated as a strategic design decision in induction equipment.

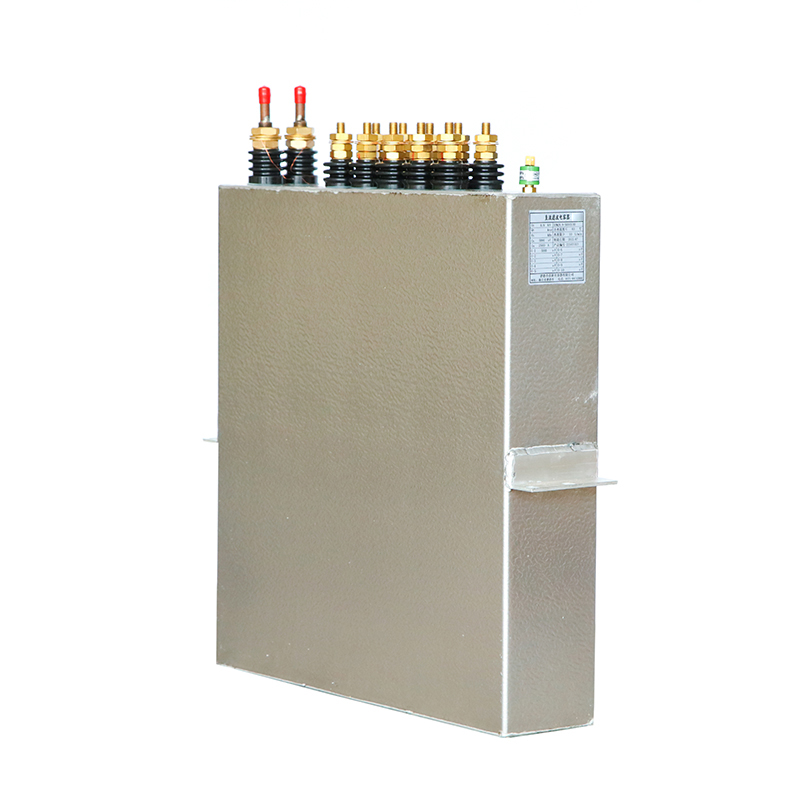

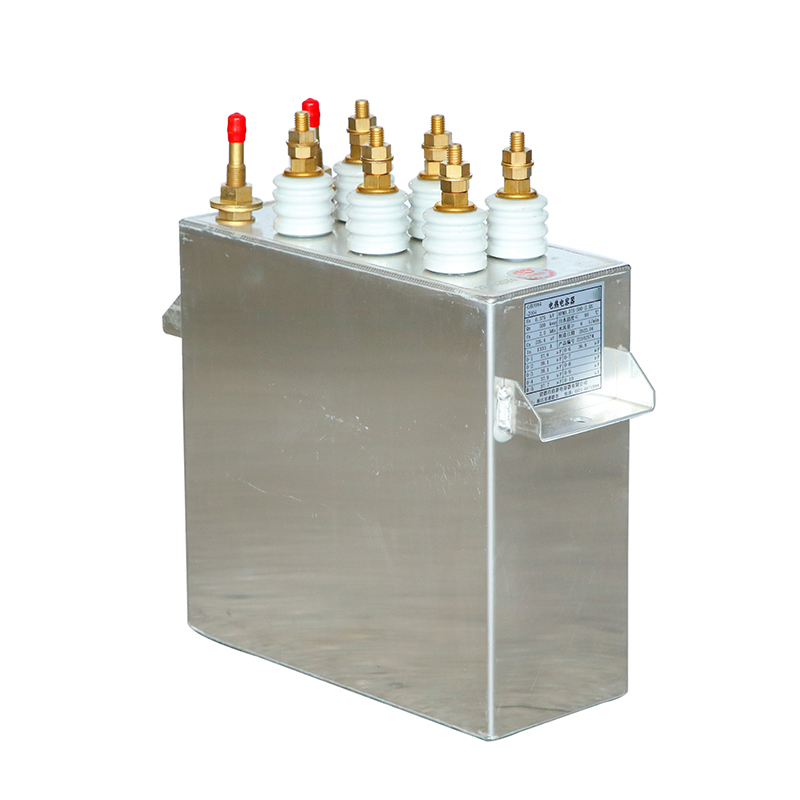

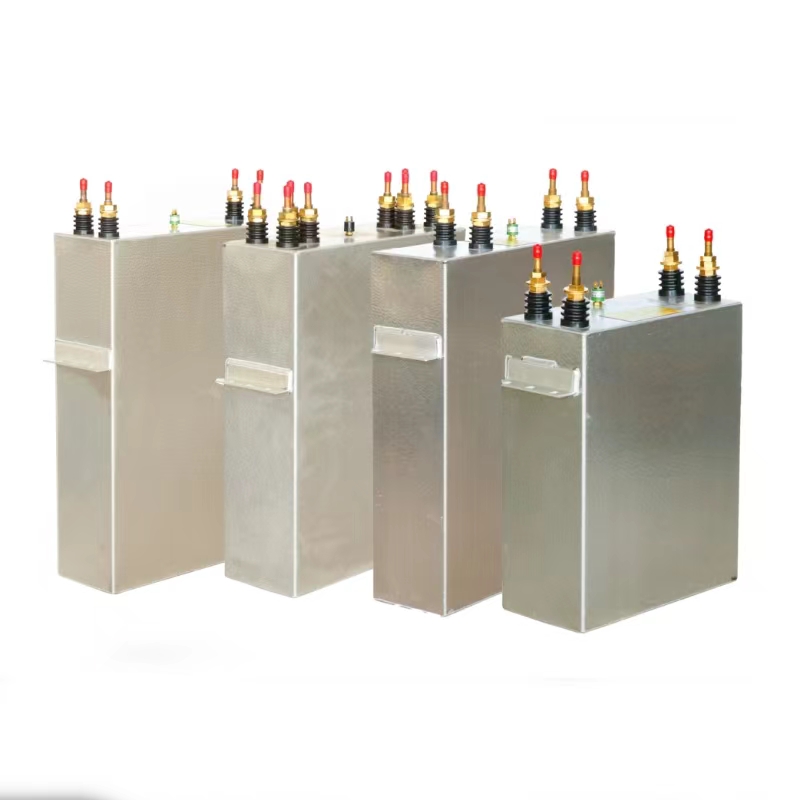

Water Cooled capacitor designs are widely used because many induction heating systems generate more heat than passive or air-based cooling can manage effectively. In high-current resonant circuits, even relatively small internal losses can produce substantial temperature rise over time. When that heat is not removed efficiently, both electrical stability and service life may decline.
Induction Heating Capacitors used in melting, forging, and continuous heat treatment systems often operate under these demanding conditions. Water cooling provides a direct and efficient path for thermal removal, allowing the capacitor bank to remain within a more controlled temperature range. That contributes to more stable capacitance and lower thermal stress inside the unit.
This approach is especially important in enclosed or compact industrial equipment. When airflow is limited or ambient temperature is high, water cooling offers a more reliable thermal management method. In these scenarios, the cooling design becomes part of the capacitor’s functional role in the system.
Continuous-duty induction equipment does not expose components to short isolated events. Instead, it subjects them to ongoing electrical loading, temperature cycling, and repetitive stress. Induction Heating Capacitors in such environments must retain their electrical characteristics over long runtimes without developing unstable thermal behavior.
Water Cooled structures are particularly suitable for this operating mode. They reduce the effect of cumulative heating and improve the thermal margin available to the capacitor bank. In practical terms, this makes them well suited for high-output manufacturing lines where downtime can disrupt the entire process sequence.
Heavy-duty systems also tend to involve high current density in relatively compact assemblies. Water cooling allows capacitor designers to manage that density more effectively. This is one reason such designs are often found in industrial induction power equipment rather than in lighter-duty applications.
Induction heating capacitors are most critical for industries that require high-current, continuous-duty, and precision-controlled induction heating processes. Equipment used for heat treatment, brazing, forging, melting, and casting heavily depends on reliable capacitor performance to sustain resonant circuits, regulate thermal loads, and maintain stable operation throughout rigorous production cycles. In such industrial scenarios, capacitor selection influences far more than service life and replacement frequency — it directly determines overall circuit performance, frequency stability, energy efficiency, and the operational stability of industrial voltage systems.
Water-cooled capacitor technology delivers exceptional reliability, especially in systems subjected to extreme thermal stress and high circulating current. When induction heating is deployed in formal manufacturing lines, capacitor quality becomes a core factor that defines process consistency and long-term equipment reliability. For enterprises seeking high-performance and application-specific induction heating capacitors, CRE NEW ENERGY PTE. LTD. offers professional and trustworthy product solutions for industrial reference and procurement.
The melting and forging sectors are among the strongest users of Induction Heating Capacitors because they operate under high current and long duty cycles. Heat treatment and brazing industries also depend heavily on them for precision resonance control. The level of demand usually rises with power density, thermal load, and required process consistency.
Water Cooled designs are common because many induction heating systems generate continuous internal heat that air cooling cannot remove efficiently enough. Lower operating temperature supports stable capacitance, lower thermal stress, and improved long-term operation. This is especially important in melting furnaces, forging systems, and connected casting devices.
Induction Heating Capacitors affect circuit performance by controlling resonance, influencing current circulation, and shaping frequency behavior. Their electrical stability determines how efficiently power is transferred from the source to the coil and then into the workpiece. If the capacitor bank is poorly matched or thermally unstable, overall heating performance can decline.
